Are there any expansion boards available for the Raspberry Pi for use with the GPIO?

Darth Vader
  • 4,218
  • 24
  • 47
  • 70
FarhadA
  • 1,847
  • 2
  • 16
  • 20

3 Answers3

7

Adafruit has unidirectional and bidirectional Logic Level Converters among other goodies for the RasPi.

BitWizard B.V. also carries a range of I2C expansion boards and accessories,

Just came across this one on youtube available here for order(preorder)

RaspberryPI has also discussed the Gertboard, but I have yet to see pricing and availability details.

Steve Robillard
  • 34,988
  • 18
  • 106
  • 110
3

The Pi-Face looks like a great expansion board.

From the website:

  • Allows you to control lights, motors etc and monitor digital inputs, switches, etc.
  • Four switches and four LEDs on board for rapid prototyping
  • Two onboard relays (10A) for easy control
  • Buffered to protect the Raspberry Pi; high-current open collector outputs and schmit trigger buffer inputs
  • Credit card size, stacks on top of Raspberry Pi
  • Easy to connect with screw terminals
  • Easy to program with C and Python libraries

From the looks of things this will allow you to take input from a myriad of sensors, and easily allow you to interface your Pi with external components like switches, relays, lights etc

darryn.ten
  • 1,476
  • 2
  • 14
  • 18
1

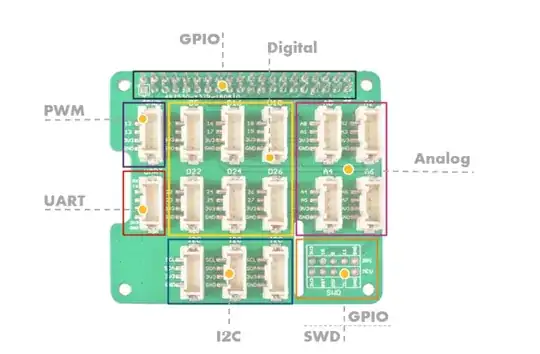

Seeed Studio has Grove Base Hat for Raspberry Pi which provides GPIO connectors. enter image description here

Elaine Wu
  • 11
  • 2
