I am sketching up a database design and it is giving me some troubles. Basically something just "smells" about this design but I can't seem to arrive at a better way to do it. For example, the Joins needed to get back to Person table could be ugly.

Business rules

  • A Person can go on many Trips.
  • Each Trip has many Destinations for its many participants (Person).
  • Every potential participant has an option to RSVP for a given Trip. If they RSVP for a Trip they must then RSVP for each Destination on that Trip.
  • Each Destination has an optional agenda (DestinationComponent) that each participant can RSVP for.
  • Assume that each RSVP relationship (at every level) will "contain many more data columns" required for information about the particular RSVP - for example, each participant can Vote on each Destination and DestinationComponent (Vote column has been omitted in RSVP tables within diagram).

Current diagram

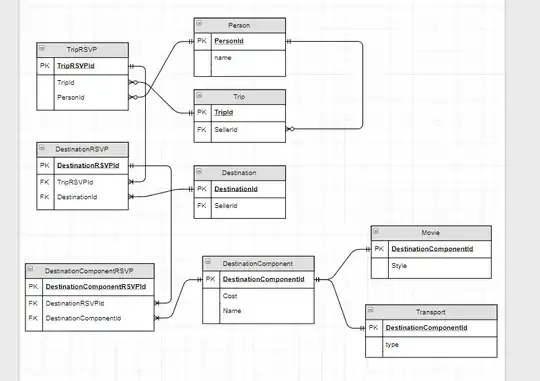

This is the diagram I have created so far:

enter image description here

Questions

  • Is there a better way to manage these relationships?
  • A "master 'junction' table" for RSVPs and one for votes?

I'm worried those tables would result in a massive overtime. Guidance would very much be appreciated!
