I have a physical SQL Server 2016 SP1 machine with this spec:
- CPU Sockets: 2
- Cores per socket: 44
- Multithreading: Yes
- Number of cores: 88
- RAM: 256 GB
- SQL Server Max Memory: 240 GB
- NUMA: CPU1 128 GB CPU2 128 GB
We are running SQL Server 2016 Enterprise Edtion CAL licensing, not Core, so with licensing limitations we can only utilise 20(40) cores. By default affinity mask enables the first 40 cores on CPU1. This means that CPU2 and the NUMA node memory are not used.
We have changed the affinity mask to enable CPU1 and CPU2 and therefore make the memory on both NUMA nodes available to SQL Server.
ALTER SERVER CONFIGURATION
SET PROCESS AFFINITY CPU = 1 TO 20, 65 TO 84;
Info and selects from Glenn Berry https://www.sqlskills.com/blogs/glenn/balancing-your-available-sql-server-core-licenses-evenly-across-numa-nodes/

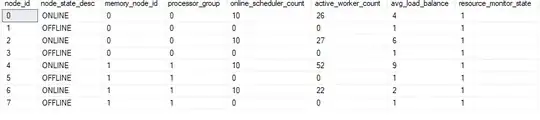

-- SQL Server NUMA node information
SELECT node_id, node_state_desc, memory_node_id, processor_group, online_scheduler_count,
active_worker_count, avg_load_balance, resource_monitor_state FROM sys.dm_os_nodes WITH (NOLOCK) WHERE node_state_desc <> N'ONLINE DAC' OPTION (RECOMPILE);
-- SQL Server schedulers by NUMA node
SELECT parent_node_id, SUM(current_tasks_count) AS [current_tasks_count], SUM(runnable_tasks_count) AS [runnable_tasks_count], SUM(active_workers_count) AS [active_workers_count], AVG(load_factor) AS avg_load_factor FROM sys.dm_os_schedulers WITH (NOLOCK) WHERE [status] = N'VISIBLE ONLINE' GROUP BY parent_node_id;
Info and selects from David Alcock https://www.sqlshack.com/monitoring-memory-clerk-and-buffer-pool-allocations-in-sql-server/
SELECT TOP 10 [type], SUM(pages_kb) / 1024 AS SizeMb FROM sys.dm_os_memory_clerks GROUP BY [type] ORDER BY SUM(pages_kb) / 1024 DESC
This indicates that around 90 GB of memory is being used.
Databases on this server add up to 285 GB. sys.dm_os_buffer_descriptors reports that the buffer pool is using 65 GB with 10 GB empty.
select * from sys.dm_os_process_memory
physical_memory_in_use_kb large_page_allocations_kb locked_page_allocations_kb total_virtual_address_space_kb virtual_address_space_reserved_kb virtual_address_space_committed_kb virtual_address_space_available_kb page_fault_count memory_utilization_percentage available_commit_limit_kb process_physical_memory_low process_virtual_memory_low 249659780 0 0 137438953344 489700832 251863768 136949252512 715604512 100 47434048 0 0
Is there a way to tell for definite if all memory is being used? Or does the fact that 4 nodes are offline mean that is the case?
Many Thanks
1) Look at the results of sys.dm_os_memory_nodes. If you configured SQL Server correctly you should see rows for memory_node_id 0 and 1. That means that SQL Server has access to all of the memory on your server.
I have memory_node_id 0 and 1.
2) Look at the results of sys.dm_os_memory_clerks for your favorite memory clerk that is NUMA aware. For example, you can see if the buffer pool is spread over multiple NUMA nodes:
SELECT memory_node_id, pages_kb FROM sys.dm_os_memory_clerks WHERE [type] = N'MEMORYCLERK_SQLBUFFERPOOL';
You are likely to see pages for both memory node 0 and 1. It's possible that you won't, and that doesn't necessarily represent a problem.
This shows pages for both node 0 and 1.
3) Look at the results of sys.dm_exec_query_resource_semaphores. Target_memory_kb should be around 70-80% of max server memory. If it's closer to 96 GB than 192 GB then you might have a problem.
target_memory_kb is 150-180 GB for resource_semaphore_id 0. The higher value is 70% of max server memory.
This all indicates that all memory is available to SQL Server, even if it isn't all currently being used. And the bufferpool usage will increase over time.
Thanks
