SQL Server estimating badly

Question

I have a heap with over a million inserts daily. This table is a "staging table" where messages are received and sent to differens queues that are processed by the application.

A stored proc named dbo.leg_msgs does an UPDATE (show plan https://www.brentozar.com/pastetheplan/?id=ryw9SDGoD) on this table, using an covered index with columns starting from most selective to least selective.

CREATE TABLE [dbo].[leg](
    [guid_operacao] [uniqueidentifier] NOT NULL,
    [dt_hr_entrada] [datetime] NOT NULL,
    [dt_hr_envio] [datetime] NULL,
    [id_fila] [int] NULL,
    [str_protocolo] [text] NOT NULL,
    [flg_enviar] [char](1) NOT NULL,
    [nr_ctrl_if] [char](20) NULL,
    [id_legado] [int] NULL,
    [tp_mensagem] [int] NOT NULL,
    [flag_sentido] [char](1) NULL,
    [flg_proc_util] [char](1) NOT NULL,
    [guid_protocolo] [uniqueidentifier] NOT NULL,
    [str_protocolo_enviada] [text] NULL,
    [fl_montou_protocolo] [char](1) NULL,
    [dt_hr_lock] [datetime] NOT NULL,
    [guid_lock] [uniqueidentifier] NOT NULL,
    [dt_hr_ok_leg] [datetime] NULL,
    [flg_ret_legado] [bit] NOT NULL,
    [flg_enviada] [bit] NOT NULL,
    [dt_hr_legado] [datetime] NULL
) ON [PRIMARY] TEXTIMAGE_ON [PRIMARY]
GO

Stored proc:

CREATE PROCEDURE [dbo].[leg_msgs] (
@pTipoMensagem     INT     = NULL,
@pIntegracaoViaSQL CHAR(1) = 'N',
@pIdFila           INT     = NULL
)
AS
BEGIN
SET NOCOUNT ON

DECLARE @guid_operacao   char(36),
@guid_protocolo   char(36),
@dt_hr_entrada   datetime,
@dt_ini    datetime,
@dt_fim    datetime,
@ds_strong_id   varchar(max),
@str_protocolo   varchar(max),
@cd_msg    varchar(10),
@nm_fila   varchar(100),
@id_tag_numctrl   varchar(20),
@id_status_matera  varchar(5),
@evento_id   varchar(10),
@dt_hr_entrada_str  varchar(50),
@nm_tag_sit_lanc  varchar(200),
@nm_proc_montagem_protocolo varchar(100),
@strSQL    nvarchar(1000),
@dt_movto   varchar(10),
@tempo_espera   numeric(20, 10),
@dt_hr_lock   datetime,
@guid_lock   char(36),
@montou_prot   char(1),
@id_fila_rep   int,
@qtd_regs   int,
@bol_delete   bit

-- Valores para @tempo_espera
--    0.00069445 (00:02:00)
--    0.00104167 (00:01:30)
--    0.00069445 (00:01:00)
--    0.00034724 (00:00:30)
SET @tempo_espera = 0.00069445

SET @dt_movto   = CONVERT(varchar(10), getdate(), 112)
SET @dt_hr_lock = getdate()
SET @guid_lock  = newid()
SET @dt_ini     = CAST(@dt_movto + ' 00:00' AS datetime)
SET @dt_fim     = CAST(@dt_movto + ' 23:59' AS datetime)


SELECT @qtd_regs = 1
FROM dba.dbo.leg WITH (NOLOCK)
WHERE tp_mensagem    = @pTipoMensagem
AND dt_hr_entrada BETWEEN @dt_ini AND @dt_fim
AND flg_enviar     = 'S'
AND flg_proc_util  = 'N'
AND id_fila       = @pIdFila
AND dt_hr_lock    <= CONVERT(varchar(23), getdate() - @tempo_espera, 121)
OPTION (RECOMPILE)

IF @@ROWCOUNT <> 0 BEGIN
BEGIN TRANSACTION
    UPDATE dba.dbo.leg WITH (ROWLOCK READPAST)
        SET dt_hr_lock = '19000101',
        guid_lock  = '00000000-0000-0000-0000-000000000000'
        WHERE tp_mensagem    = @pTipoMensagem
        AND dt_hr_entrada BETWEEN @dt_ini AND @dt_fim
        AND flg_enviar     = 'S'
        AND flg_proc_util  = 'N'
        AND id_fila       = @pIdFila
        AND dt_hr_lock    <= CONVERT(varchar(23), getdate() - @tempo_espera, 121)

    IF @@ERROR = 0 BEGIN
        COMMIT TRANSACTION
    END
    ELSE BEGIN
        ROLLBACK TRANSACTION
        RETURN
    END
END

SET NOCOUNT OFF


END

Normally it runs quickly (about 30-50ms), but if the number of rows returned gets above 5000, it starts running above 100-200ms.

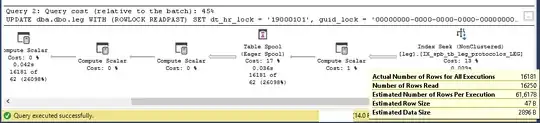

My first approach was to rebuild table and indexes, but SQL Server is still missing estimates. The screenshot below is after the rebuild.

CPU time = 0 ms,  elapsed time = 0 ms.
Table 'leg'. Scan count 1, logical reads 16321, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Worktable'. Scan count 1, logical reads 32676, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

Any thoughts?

edit:

SQL Server 2017, but my current COMPATIBILITY_LEVEL = 110

As a test, I created a clustered index, rebuild everything but still getting bad estimates.

alter table leg add id bigint identity(1,1)
create clustered index ix_id on leg (id)
alter index all on dbo.leg rebuild

CPU time = 0 ms, elapsed time = 5 ms.
Table 'leg'. Scan count 1, logical reads 49703, physical reads 0, read-ahead reads 30, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.
Table 'Worktable'. Scan count 1, logical reads 32724, physical reads 0, read-ahead reads 0, lob logical reads 0, lob physical reads 0, lob read-ahead reads 0.

New plan: https://www.brentozar.com/pastetheplan/?id=rkZ6mtzoP

**Helpful **links related suggested by @NikitaSerbskiy

Why does SQL Server use a better execution plan when I inline the variable? Why You’re Tuning Stored Procedures Wrong (the Problem with Local Variables)

Answer 1

While it does appear that there's a little bit of a cardinality estimate issue, my guess is that isn't too farfetched for a heap table.

Moreso, in your Execution Plan (on PasteThePlan.com) shows the majority of your bottleneck is during the UPDATE to the Leg table. I think likely this is because it is a heap table. I also see you're selecting from the Leg table as well in your query before the UPDATE.

Both of these operations might be more performant if you did use a clustered index on your Leg table instead of it being a heap. I can't say for sure though without testing it, but I'd recommend trying it. (If you're rebuilding your Table and it's Indexes anyway, then it's virtually not much different than creating the clustered index on the table before the SELECT and UPDATE and dropping it after.)

Answer 2

Your query updates a column (dt_hr_lock), but also references that column in the where clause. This introduces Halloween Protection, where SQL Server adds an Eager Spool or sometimes a Sort to the execution to prevent reading the updated column. Effectively the query won't execute any further until the Eager Spool completes, which will hurt performance.

In a specific case we were able to eliminate the Halloween Protection, which sped up the query considerably on our larger tables ( >1M )

In this case I would try to eliminate the need to access the column dt_hr_lock in the where clause when possible. Instead of just a select to see if there are rows that need an update, create a temporary table of the rows needing update, then join that into the update, so you don't need to reference the column you update twice.

Answer 3

Normally it runs quick, but if the number os rows return get greater than 5000, it starts being sluggish.

Didn't you face with lock escalation because of

A single Transact-SQL statement acquires at least 5,000 locks on a single nonpartitioned table or index.

?
https://learn.microsoft.com/en-us/sql/relational-databases/sql-server-transaction-locking-and-row-versioning-guide?view=sql-server-ver15
