I currently have three tables: product, ingredient, and product_ingredient (m2m relationship).

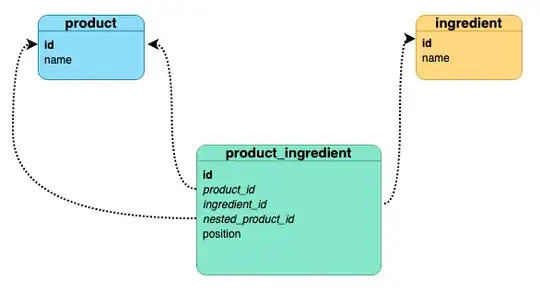

Product Ingredient relationship diagram

A product has many ingredients and nested products through product_ingredient. The nested products themselves have many ingredients and nested products.

How can I efficiently query these relationships so that a single query can select a product's ingredients through multiple levels of nested relationships?

  • The product ingredients should be ordered by their position int, with respect to its product_id.
  • Each level of nested ingredients need to be grouped and ordered by the product they're related to.
  • The entities are read more frequently than written, so read optimized would be preferred if there are any cache-based approaches (like materialized views).
  • The actual structure has foreign keys on the ingredient table which are aggregated in different ways.

For example:

> select * from product;
 id | name
----+------------------------
  1 | chocolate
  2 | chocolate chip cookies

> select * from ingredient; id | name ----+-------------- 1 | cocoa 2 | cocoa butter 3 | flour 4 | eggs 5 | baking soda

> select * from product_ingredient; id | product_id | ingredient_id | nested_product_id | position ----+------------+---------------+-------------------+---------- 1 | 1 | 2 | (null) | 0 2 | 1 | 1 | (null) | 1 3 | 2 | 3 | (null) | 0 4 | 2 | 4 | (null) | 1 5 | 2 | (null) | 1 | 2 6 | 2 | 5 | (null) | 3

My ideal query would produce the following output:

> select ...;
 product_id |           product_name | ingredient_id | ingredient_name | position
------------+------------------------+---------------+-----------------+----------
          2 | chocolate chip cookies |             3 | flour           |        0
          2 | chocolate chip cookies |             4 | eggs            |        1
          1 |              chocolate |             2 | cocoa butter    |        0
          1 |              chocolate |             1 | cocoa           |        1
          2 | chocolate chip cookies |             5 | baking soda     |        3

Note that the sort order is maintained using position through the nested relationships.

Additionally, how do I prevent a circular relationships, where a product_ingredient references a nested_product_id that is a parent or grandparent relation? Is there a CONSTRAINT that I can use?

damon
  • 111
  • 3

0 Answers0
