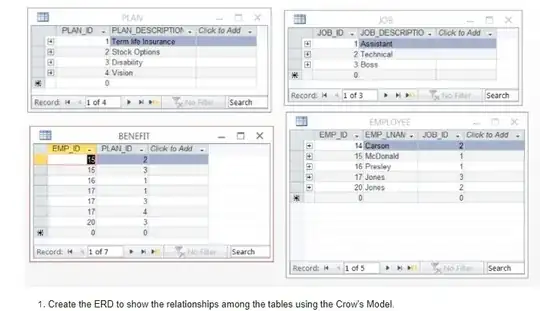

I am very much a beginner and taking a class on databases. My assignment involves using Crow's Foot notation to represent the following tables:

enter image description here

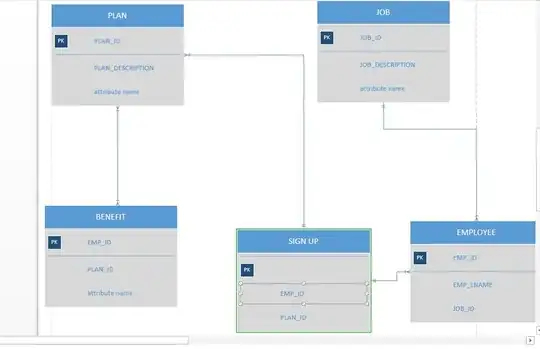

This is my design for it so far. I am nowhere near done but am I at least on the right track? I would have to use a composite entity to resolve the M:N relationships shown with these tables, right?

(Those M:N relationships being Employee to Plan and Benefit to Plan)

enter image description here

Please be forgiving of my work haha.

I really appreciate all of the help and insight!

Hope you all have a good one wherever you are!

RagingCalm
  • 11
  • 1

2 Answers2

0

I can't see where SIGN UP came in. Maybe there's more to your assignment than you describe in the question? No matter.

The rest looks good as far as it goes. BENEFIT has a column called EMP_ID. You may want to have a good think about that one.

As for the M:N. What columns would it have? Does that look like anything that exists already?

Michael Green
  • 25,255
  • 13
  • 54
  • 100
0

I see where I went wrong as far as the Benefit column. Thank you for pointing that out. Really, thank you for taking the time to answer my question as you have. Going back over the assignment, my notes mention that usually M: N relationships are not directly supported in a relational environment, so I was trying to resolve that with the composite entity of SIGN UP. However looking at it with fresh eyes, I may have to re-think the direction. Good to know I am generally on the right track though.Thank you again very much!
