SQL Server table query with pagination performance tuning, understand the current solution

Question

as stated in the title i start a performance tuning of a table query with pagination generated by a legacy program that use Linq To SQL as ORM.

I have found this resource in which is highly recommended to sort table before pagination : https://rimdev.io/optimizing-linq-sql-skip-take/

So i have follow the suggestion provided and experimented an huge difference. It's clear to me that is somewhat related on how row_nummber is calculated but is not clear to me exactly what happened and why there is so much difference between the two queries.

Original slow query (dataset of ~7K elements, take ~3s) :

SELECT [t7].[ID], [t7].[ID_BRAND], [t7].[CODE], [t7].[CODFOR], [t7].[COD_ALT01], [t7].[COD_ALT02], [t7].[COD_ALT03], [t7].[ID_UOM], [t7].[IS_ACTIVE], [t7].[_ATTRIBUTES] AS [_ATTRIBUTES], [t7].[_DOCUMENTS] AS [_DOCUMENTS], [t7].[_SEO] AS [_SEO], [t7].[_TRANSLATIONS] AS [_TRANSLATIONS], [t7].[_TAGS] AS [_TAGS], [t7].[_NOTES] AS [_NOTES], [t7].[_METADATA] AS [_METADATA], [t7].[IS_B2B], [t7].[IS_B2C], [t7].[IS_PROMO], [t7].[IS_NEWS], [t7].[CAN_BE_RETURNED], [t7].[IS_SHIPPABLE], [t7].[HAS_SHIPPING_COSTS], [t7].[IS_PURCHEASABLE], [t7].[test], [t7].[ID2], [t7].[CODE2], [t7].[BUSINESS_NAME], [t7].[NAME], [t7].[PHONE_01], [t7].[PHONE_02], [t7].[PHONE_03], [t7].[FAX_01], [t7].[FAX_02], [t7].[COUNTRY_01], [t7].[CITY_01], [t7].[ADDRESS_01], [t7].[COUNTRY_02], [t7].[CITY_02], [t7].[ADDRESS_02], [t7].[EMAIL_01], [t7].[EMAIL_02], [t7].[PEC], [t7].[SITE_01], [t7].[SITE_02], [t7].[SITE_03], [t7].[SITE_04], [t7].[VAT_NUMBER], [t7].[SORT], [t7].[GROUPID_01], [t7].[IS_GROUPLEADER_01], [t7].[GROUPID_02], [t7].[IS_GROUPLEADER_02],[t7].[IS_ACTIVE2], [t7].[[_DOCUMENTS]]2] AS [_DOCUMENTS2], [t7].[[_SEO]]2] AS [_SEO2], [t7].[[_METADATA]]2] AS [_METADATA2], [t7].[test2], [t7].[ID3], [t7].[CODE3], [t7].[[_TRANSLATIONS]]2] AS [_TRANSLATIONS2], [t7].[[_METADATA]]3] AS [_METADATA3], [t7].[test3], [t7].[ID4], [t7].[ID_LINE], [t7].[ID_GROUP], [t7].[ID_CLASS], [t7].[ID_FAM], [t7].[ID_ARTICLE]
FROM (
    SELECT ROW_NUMBER() OVER (ORDER BY [t0].[ID], [t0].[ID_BRAND], [t0].[CODE], [t0].[CODFOR], [t0].[COD_ALT01], [t0].[COD_ALT02], [t0].[COD_ALT03], [t0].[ID_UOM], [t0].[IS_ACTIVE], [t0].[_ATTRIBUTES], [t0].[_DOCUMENTS], [t0].[_SEO], [t0].[_TRANSLATIONS], [t0].[_TAGS], [t0].[_NOTES], [t0].[_METADATA], [t0].[IS_B2B], [t0].[IS_B2C], [t0].[IS_PROMO], [t0].[IS_NEWS], [t0].[CAN_BE_RETURNED], [t0].[IS_SHIPPABLE], [t0].[HAS_SHIPPING_COSTS], [t0].[IS_PURCHEASABLE], [t2].[test], [t2].[ID], [t2].[CODE], [t2].[BUSINESS_NAME], [t2].[NAME], [t2].[PHONE_01], [t2].[PHONE_02], [t2].[PHONE_03], [t2].[FAX_01], [t2].[FAX_02], [t2].[COUNTRY_01], [t2].[CITY_01], [t2].[ADDRESS_01], [t2].[COUNTRY_02], [t2].[CITY_02], [t2].[ADDRESS_02], [t2].[EMAIL_01], [t2].[EMAIL_02], [t2].[PEC], [t2].[SITE_01], [t2].[SITE_02], [t2].[SITE_03], [t2].[SITE_04], [t2].[VAT_NUMBER], [t2].[SORT], [t2].[GROUPID_01], [t2].[IS_GROUPLEADER_01], [t2].[GROUPID_02], [t2].[IS_GROUPLEADER_02], [t2].[IS_ACTIVE], [t2].[_DOCUMENTS], [t2].[_SEO], [t2].[_METADATA], [t4].[test], [t4].[ID], [t4].[CODE], [t4].[_TRANSLATIONS], [t4].[_METADATA], [t6].[test], [t6].[ID], [t6].[ID_LINE], [t6].[ID_GROUP], [t6].[ID_CLASS], [t6].[ID_FAM], [t6].[ID_ARTICLE]) AS [ROW_NUMBER], [t0].[ID], [t0].[ID_BRAND], [t0].[CODE], [t0].[CODFOR], [t0].[COD_ALT01], [t0].[COD_ALT02], [t0].[COD_ALT03], [t0].[ID_UOM], [t0].[IS_ACTIVE], [t0].[_ATTRIBUTES], [t0].[_DOCUMENTS], [t0].[_SEO], [t0].[_TRANSLATIONS], [t0].[_TAGS], [t0].[_NOTES], [t0].[_METADATA], [t0].[IS_B2B], [t0].[IS_B2C], [t0].[IS_PROMO], [t0].[IS_NEWS], [t0].[CAN_BE_RETURNED], [t0].[IS_SHIPPABLE], [t0].[HAS_SHIPPING_COSTS], [t0].[IS_PURCHEASABLE], [t2].[test], [t2].[ID] AS [ID2], [t2].[CODE] AS [CODE2], [t2].[BUSINESS_NAME], [t2].[NAME], [t2].[PHONE_01], [t2].[PHONE_02], [t2].[PHONE_03], [t2].[FAX_01], [t2].[FAX_02], [t2].[COUNTRY_01], [t2].[CITY_01], [t2].[ADDRESS_01], [t2].[COUNTRY_02], [t2].[CITY_02], [t2].[ADDRESS_02], [t2].[EMAIL_01], [t2].[EMAIL_02], [t2].[PEC], [t2].[SITE_01], [t2].[SITE_02], [t2].[SITE_03], [t2].[SITE_04], [t2].[VAT_NUMBER], [t2].[SORT], [t2].[GROUPID_01], [t2].[IS_GROUPLEADER_01], [t2].[GROUPID_02], [t2].[IS_GROUPLEADER_02], [t2].[IS_ACTIVE] AS [IS_ACTIVE2], [t2].[_DOCUMENTS] AS [[_DOCUMENTS]]2], [t2].[_SEO] AS [[_SEO]]2], [t2].[_METADATA] AS [[_METADATA]]2], [t4].[test] AS [test2], [t4].[ID] AS [ID3], [t4].[CODE] AS [CODE3], [t4].[_TRANSLATIONS] AS [[_TRANSLATIONS]]2], [t4].[_METADATA] AS [[_METADATA]]3], [t6].[test] AS [test3], [t6].[ID] AS [ID4], [t6].[ID_LINE], [t6].[ID_GROUP], [t6].[ID_CLASS], [t6].[ID_FAM], [t6].[ID_ARTICLE]
    FROM [dbo].[tbl_ana_Articles] AS [t0]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t1].[ID], [t1].[CODE], [t1].[BUSINESS_NAME], [t1].[NAME], [t1].[PHONE_01], [t1].[PHONE_02], [t1].[PHONE_03], [t1].[FAX_01], [t1].[FAX_02], [t1].[COUNTRY_01], [t1].[CITY_01], [t1].[ADDRESS_01], [t1].[COUNTRY_02], [t1].[CITY_02], [t1].[ADDRESS_02], [t1].[EMAIL_01], [t1].[EMAIL_02], [t1].[PEC], [t1].[SITE_01], [t1].[SITE_02], [t1].[SITE_03], [t1].[SITE_04], [t1].[VAT_NUMBER], [t1].[SORT], [t1].[GROUPID_01], [t1].[IS_GROUPLEADER_01], [t1].[GROUPID_02], [t1].[IS_GROUPLEADER_02], [t1].[IS_ACTIVE], [t1].[_DOCUMENTS], [t1].[_SEO], [t1].[_METADATA]
        FROM [dbo].[tbl_ana_Brands] AS [t1]
        ) AS [t2] ON [t2].[ID] = [t0].[ID_BRAND]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t3].[ID], [t3].[CODE], [t3].[_TRANSLATIONS], [t3].[_METADATA]
        FROM [dbo].[tbl_ana_UoMs] AS [t3]
        ) AS [t4] ON [t4].[ID] = [t0].[ID_UOM]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t5].[ID], [t5].[ID_LINE], [t5].[ID_GROUP], [t5].[ID_CLASS], [t5].[ID_FAM], [t5].[ID_ARTICLE]
        FROM [dbo].[tbl_src_ArticlesCategories] AS [t5]
        ) AS [t6] ON [t6].[ID_ARTICLE] = [t0].[ID]
    WHERE (
        (CASE
            WHEN 1 = 1 THEN CONVERT(Int,[t0].[IS_ACTIVE])
            ELSE 0
         END)) = 1
    ) AS [t7]
WHERE [t7].[ROW_NUMBER]  BETWEEN 7272 + 1 AND 7284
ORDER BY [t7].[ROW_NUMBER]

Here slow query execution plan : https://www.brentozar.com/pastetheplan/?id=Sk-rLnY3F

Revised fast query (dataset of ~7K elements, take ~0s) :

SELECT [t7].[ID], [t7].[ID_BRAND], [t7].[CODE], [t7].[CODFOR], [t7].[COD_ALT01], [t7].[COD_ALT02], [t7].[COD_ALT03], [t7].[ID_UOM], [t7].[IS_ACTIVE], [t7].[_ATTRIBUTES] AS [_ATTRIBUTES], [t7].[_DOCUMENTS] AS [_DOCUMENTS], [t7].[_SEO] AS [_SEO], [t7].[_TRANSLATIONS] AS [_TRANSLATIONS], [t7].[_TAGS] AS [_TAGS], [t7].[_NOTES] AS [_NOTES], [t7].[_METADATA] AS [_METADATA], [t7].[IS_B2B], [t7].[IS_B2C], [t7].[IS_PROMO], [t7].[IS_NEWS], [t7].[CAN_BE_RETURNED], [t7].[IS_SHIPPABLE], [t7].[HAS_SHIPPING_COSTS], [t7].[IS_PURCHEASABLE], [t7].[test], [t7].[ID2], [t7].[CODE2], [t7].[BUSINESS_NAME], [t7].[NAME], [t7].[PHONE_01], [t7].[PHONE_02], [t7].[PHONE_03], [t7].[FAX_01], [t7].[FAX_02], [t7].[COUNTRY_01], [t7].[CITY_01], [t7].[ADDRESS_01], [t7].[COUNTRY_02], [t7].[CITY_02], [t7].[ADDRESS_02], [t7].[EMAIL_01], [t7].[EMAIL_02], [t7].[PEC], [t7].[SITE_01], [t7].[SITE_02], [t7].[SITE_03], [t7].[SITE_04], [t7].[VAT_NUMBER], [t7].[SORT], [t7].[GROUPID_01], [t7].[IS_GROUPLEADER_01], [t7].[GROUPID_02], [t7].[IS_GROUPLEADER_02],[t7].[IS_ACTIVE2], [t7].[[_DOCUMENTS]]2] AS [_DOCUMENTS2], [t7].[[_SEO]]2] AS [_SEO2], [t7].[[_METADATA]]2] AS [_METADATA2], [t7].[test2], [t7].[ID3], [t7].[CODE3], [t7].[[_TRANSLATIONS]]2] AS [_TRANSLATIONS2], [t7].[[_METADATA]]3] AS [_METADATA3], [t7].[test3], [t7].[ID4], [t7].[ID_LINE], [t7].[ID_GROUP], [t7].[ID_CLASS], [t7].[ID_FAM], [t7].[ID_ARTICLE]
FROM (
    SELECT ROW_NUMBER() OVER (ORDER BY [t0].[ID]) AS [ROW_NUMBER], [t0].[ID], [t0].[ID_BRAND], [t0].[CODE], [t0].[CODFOR], [t0].[COD_ALT01], [t0].[COD_ALT02], [t0].[COD_ALT03], [t0].[ID_UOM], [t0].[IS_ACTIVE], [t0].[_ATTRIBUTES], [t0].[_DOCUMENTS], [t0].[_SEO], [t0].[_TRANSLATIONS], [t0].[_TAGS], [t0].[_NOTES], [t0].[_METADATA], [t0].[IS_B2B], [t0].[IS_B2C], [t0].[IS_PROMO], [t0].[IS_NEWS], [t0].[CAN_BE_RETURNED], [t0].[IS_SHIPPABLE], [t0].[HAS_SHIPPING_COSTS], [t0].[IS_PURCHEASABLE], [t2].[test], [t2].[ID] AS [ID2], [t2].[CODE] AS [CODE2], [t2].[BUSINESS_NAME], [t2].[NAME], [t2].[PHONE_01], [t2].[PHONE_02], [t2].[PHONE_03], [t2].[FAX_01], [t2].[FAX_02], [t2].[COUNTRY_01], [t2].[CITY_01], [t2].[ADDRESS_01], [t2].[COUNTRY_02], [t2].[CITY_02], [t2].[ADDRESS_02], [t2].[EMAIL_01], [t2].[EMAIL_02], [t2].[PEC], [t2].[SITE_01], [t2].[SITE_02], [t2].[SITE_03], [t2].[SITE_04], [t2].[VAT_NUMBER], [t2].[SORT], [t2].[GROUPID_01], [t2].[IS_GROUPLEADER_01], [t2].[GROUPID_02], [t2].[IS_GROUPLEADER_02], [t2].[IS_ACTIVE] AS [IS_ACTIVE2], [t2].[_DOCUMENTS] AS [[_DOCUMENTS]]2], [t2].[_SEO] AS [[_SEO]]2], [t2].[_METADATA] AS [[_METADATA]]2], [t4].[test] AS [test2], [t4].[ID] AS [ID3], [t4].[CODE] AS [CODE3], [t4].[_TRANSLATIONS] AS [[_TRANSLATIONS]]2], [t4].[_METADATA] AS [[_METADATA]]3], [t6].[test] AS [test3], [t6].[ID] AS [ID4], [t6].[ID_LINE], [t6].[ID_GROUP], [t6].[ID_CLASS], [t6].[ID_FAM], [t6].[ID_ARTICLE]
    FROM [dbo].[tbl_ana_Articles] AS [t0]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t1].[ID], [t1].[CODE], [t1].[BUSINESS_NAME], [t1].[NAME], [t1].[PHONE_01], [t1].[PHONE_02], [t1].[PHONE_03], [t1].[FAX_01], [t1].[FAX_02], [t1].[COUNTRY_01], [t1].[CITY_01], [t1].[ADDRESS_01], [t1].[COUNTRY_02], [t1].[CITY_02], [t1].[ADDRESS_02], [t1].[EMAIL_01], [t1].[EMAIL_02], [t1].[PEC], [t1].[SITE_01], [t1].[SITE_02], [t1].[SITE_03], [t1].[SITE_04], [t1].[VAT_NUMBER], [t1].[SORT], [t1].[GROUPID_01], [t1].[IS_GROUPLEADER_01], [t1].[GROUPID_02], [t1].[IS_GROUPLEADER_02], [t1].[IS_ACTIVE], [t1].[_DOCUMENTS], [t1].[_SEO], [t1].[_METADATA]
        FROM [dbo].[tbl_ana_Brands] AS [t1]
        ) AS [t2] ON [t2].[ID] = [t0].[ID_BRAND]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t3].[ID], [t3].[CODE], [t3].[_TRANSLATIONS], [t3].[_METADATA]
        FROM [dbo].[tbl_ana_UoMs] AS [t3]
        ) AS [t4] ON [t4].[ID] = [t0].[ID_UOM]
    LEFT OUTER JOIN (
        SELECT 1 AS [test], [t5].[ID], [t5].[ID_LINE], [t5].[ID_GROUP], [t5].[ID_CLASS], [t5].[ID_FAM], [t5].[ID_ARTICLE]
        FROM [dbo].[tbl_src_ArticlesCategories] AS [t5]
        ) AS [t6] ON [t6].[ID_ARTICLE] = [t0].[ID]
    WHERE (
        (CASE
            WHEN 1 = 1 THEN CONVERT(Int,[t0].[IS_ACTIVE])
            ELSE 0
         END)) = 1
    ) AS [t7]
WHERE [t7].[ROW_NUMBER] BETWEEN 7272 + 1 AND 7284
ORDER BY [t7].[ROW_NUMBER]

Here the fast query exectution plan : https://www.brentozar.com/pastetheplan/?id=B10l82K2Y

Note : all the query code is autogenerated by ORM

The two queries look very similar, and is not clear to me what improve so drammatically the performance. I really appreciate an hint in what help SQL Server so much, so that i can better understand how to tune ORM in future.

Erik Reasonable Rates Darling · Accepted Answer · 2022-01-10T14:32:43.983

das spool

The main difference between the two queries is the presence of an Eager Index Spool.

From the article:

Eager index spools can occur on the inner side of Nested Loops joins to reduce the amount of work that needs to be done there, by creating a more opportune index for the loop to work off of.

That all sounds very good, but there are some problems:

The index gets created single-threaded

The way data is loaded into the spool is very inefficient

The spool is disposed of when the query is finished, It’ll get built over and over again on later executions

There’s no missing index request for the spool anywhere

But in your case, since the spool is quite small, it works in your favor.

slowpoke

In the slow query, you have a nested loops join against tbl_src_ArticlesCategories which executes ~7k times, but doesn't have a useful index, so the entire table is scanned for each execution.

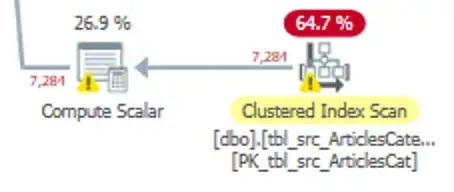

The scan:

The details:

You end up reading ~53 million rows in total when all is said and done, because you scan ~736k rows ~7k times.

fastpoke

In the fast plan, you get this instead:

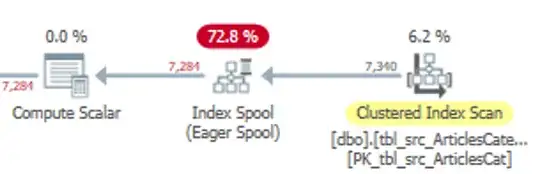

The scan and spool (with seek):

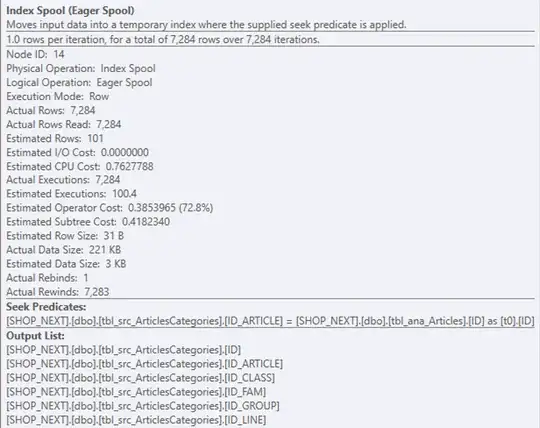

The details

The optimizer for this plan decided to create a good index for you, so it has a more suitable structure to use to locate matching rows in ID_ARTICLE.

You do ~7k seeks, which is much more efficient given the circumstances.

equalizer

You could potentially get equal performance from both queries by adding this index:

CREATE /*UNIQUE?*/ INDEX spool_b_gone
    ON [dbo].[tbl_src_ArticlesCategories]
(
    [ID_ARTICLE]
)
INCLUDE
(
    [ID_LINE],
    [ID_GROUP],
    [ID_CLASS],
    [ID_FAM]
);

Though sometimes the optimizer is foolish and may decide to spool even when you have the right index in place.

differences?

The immediate difference that I see is that in the slower execution, you generate the row number over a ton more columns across different tables:

But I'm a bit short on time, so there may be other things contributing to the choice between spool/no spool.
