I have a legacy MS SQL Server database where all the primary and foreign keys were created as indexes. I am developing the new version of our software with Entity Frameworks, which I have learned expects every table to have a primary key. So I have to convert every PK and probably every FK index to a key.

When I tried one key at a time, I found that before converting a PK I have to find and drop ALL FK indexes.

Is there a good way to make an MS SQL script to convert the indexes as a batch? Or do I have to do the manual approach and build a script to drop each index, build all the PKs, then build all the FKs?

(I'm running MS SQL Server 2012.)

ETA the script I tried and its errors.

/****** Object:  Index [FK_PROJECT_ORGANIZATION]    Script Date: 7/16/2014 10:07:13 AM ******/
DROP INDEX [FK_PROJECT_ORGANIZATION] ON [dbo].[PROJECT]
GO

/****** Object:  Index [PK_ORGANIZATION]    Script Date: 7/16/2014 9:23:54 AM ******/
DROP INDEX [PK_ORGANIZATION] ON [dbo].[ORGANIZATION] WITH ( ONLINE = OFF )
GO

ALTER TABLE [dbo].[ORGANIZATION] ADD  CONSTRAINT [PK_ORGANIZATION] PRIMARY KEY CLUSTERED
(
    [organization_id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, IGNORE_DUP_KEY = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO


/****** Object:  Index [FK_PROJECT_ORGANIZATION]    Script Date: 7/16/2014 10:07:13 AM ******/
--Re-create the index as a foreign key
ALTER TABLE [dbo].[PROJECT]  WITH CHECK ADD  CONSTRAINT [FK_PROJECT_ORGANIZATION] FOREIGN KEY([organization_id])
REFERENCES [dbo].[ORGANIZATION] ([organization_id])
GO

ALTER TABLE [dbo].[PROJECT] CHECK CONSTRAINT [FK_PROJECT_ORGANIZATION]
GO

The error messages:

Msg 3723, Level 16, State 6, Line 3
An explicit DROP INDEX is not allowed on index 'dbo.ORGANIZATION.PK_ORGANIZATION'. It is being used for FOREIGN KEY constraint enforcement.
Msg 1913, Level 16, State 1, Line 2
The operation failed because an index or statistics with name 'PK_ORGANIZATION' already exists on table 'dbo.ORGANIZATION'.
Msg 1750, Level 16, State 0, Line 2
Could not create constraint. See previous errors.

ETA2: The CREATE TABLE script: (ETA3 - the script generated from the legacy database.)

/****** Object:  Table [dbo].[ORGANIZATION]    Script Date: 7/16/2014 12:22:47 PM ******/
SET ANSI_NULLS ON
GO

SET QUOTED_IDENTIFIER ON
GO

SET ANSI_PADDING ON
GO

CREATE TABLE [dbo].[ORGANIZATION](
    [organization_id] [int] IDENTITY(1,1) NOT NULL,
    [user_name] [varchar](50) NULL,
    [user_phone] [varchar](30) NULL,
    [user_email_address] [varchar](50) NULL,
    [user_password] [varchar](50) NULL,
    [org_type] [varchar](20) NULL,
    [status] [varchar](20) NULL,
    [company] [varchar](100) NULL,
    [address_1] [varchar](40) NULL,
    [address_2] [varchar](40) NULL,
    [address_3] [varchar](40) NULL,
    [city] [varchar](40) NULL,
    [state_code] [varchar](10) NULL,
    [postal_code] [varchar](25) NULL,
    [business_poc_name] [varchar](50) NULL,
    [business_poc_title] [varchar](50) NULL,
    [business_poc_phone] [varchar](30) NULL,
    [business_poc_cell] [varchar](30) NULL,
    [business_poc_email_address] [varchar](50) NULL,
    [business_poc_city] [varchar](40) NULL,
    [business_poc_state_code] [varchar](10) NULL,
    [url] [varchar](50) NULL,
    [datetime_created] [smalldatetime] NULL
) ON [PRIMARY]

GO

SET ANSI_PADDING OFF
GO

/****** Object:  Index [PK_ORGANIZATION]    Script Date: 7/16/2014 12:22:47 PM ******/
CREATE UNIQUE CLUSTERED INDEX [PK_ORGANIZATION] ON [dbo].[ORGANIZATION]
(
    [organization_id] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, IGNORE_DUP_KEY = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO

SET ANSI_PADDING ON

GO

/****** Object:  Index [IX_ORGANIZATION_company]    Script Date: 7/16/2014 12:22:47 PM ******/
CREATE NONCLUSTERED INDEX [IX_ORGANIZATION_company] ON [dbo].[ORGANIZATION]
(
    [company] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO

SET ANSI_PADDING ON

GO

/****** Object:  Index [IX_ORGANIZATION_organization_id_org_type]    Script Date: 7/16/2014 12:22:47 PM ******/
CREATE NONCLUSTERED INDEX [IX_ORGANIZATION_organization_id_org_type] ON [dbo].[ORGANIZATION]
(
    [organization_id] ASC,
    [org_type] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO

SET ANSI_PADDING ON

GO

/****** Object:  Index [IX_ORGANIZATION_user_email_address]    Script Date: 7/16/2014 12:22:47 PM ******/
CREATE NONCLUSTERED INDEX [IX_ORGANIZATION_user_email_address] ON [dbo].[ORGANIZATION]
(
    [user_email_address] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO

SET ANSI_PADDING ON

GO

/****** Object:  Index [IX_ORGANIZATION_user_name]    Script Date: 7/16/2014 12:22:47 PM ******/
CREATE NONCLUSTERED INDEX [IX_ORGANIZATION_user_name] ON [dbo].[ORGANIZATION]
(
    [user_name] ASC
)WITH (PAD_INDEX = OFF, STATISTICS_NORECOMPUTE = OFF, SORT_IN_TEMPDB = OFF, DROP_EXISTING = OFF, ONLINE = OFF, ALLOW_ROW_LOCKS = ON, ALLOW_PAGE_LOCKS = ON) ON [PRIMARY]
GO

1 Answers1

4

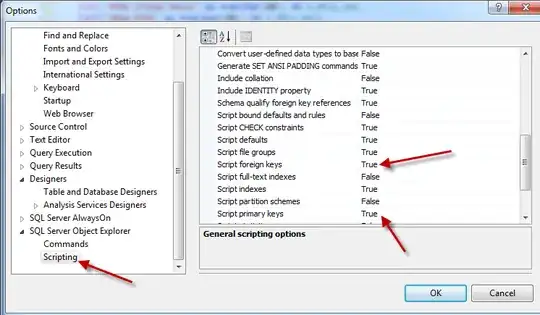

If you go into your SSMS options table and look at the scripting options for object explorer do you see foreign keys and primary keys enabled? That's pretty much the only thing I can think of that may be holding you back.

enter image description here
