Jenkins Pipeline and stash Pull Request Builder not working on PR create/update

Question

Below is the requirement needed to achieve using the Jenkins Pipeline and i am new bee into Jenkins Pipeline.

After completing development work and pushing his changes to Bitbucket the user creates a pull request.
In order to approve a pull request we require at least one successful Jenkins build. Thereby we would like to get only the build result of the code checked in for the pull request.
When a pull request is created/updated Jenkins shall be triggered automatically for real continuous integration.
The build result shall be reported back to Bitbucket.

Used Stash Pull Request Builder and stash Notifier for the above process which is working for Normal Freestyle Project.

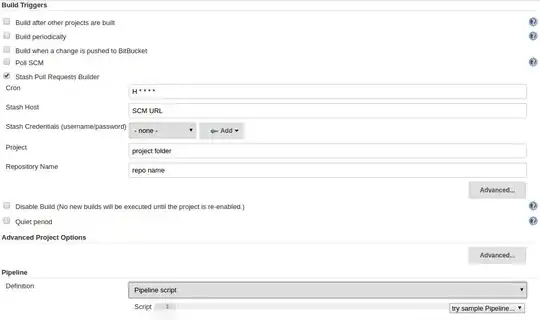

We need to migrate the similar functionality using Jenkins pipeline, So have created the jenkins job as below.

The pipeline script to checks out the PR branch and trigger build is as below

node {
    stage('Checkout') {
        checkout(
        [
            $class: 'GitSCM',
            extensions: [
                [$class: 'CleanCheckout'],
            ],
            branches: [
                [name: '']
            ],
            userRemoteConfigs:
            [[
                credentialsId: 'id',
                url: 'repourl.git'
                refspec: ('+refs/pull-requests/*/from:refs/remotes/origin/pr/*/from'),
                branch: ('origin/pr/${pullRequestId}/from')
            ]]
        ])
    }
stage('Build') {
    sh 'make'
}
stage('notify') {
step([$class: 'StashNotifier'])
    try {
        // Do stuff
        currentBuild.result = 'SUCCESS'
    } catch(err) {
        currentBuild.result = 'FAILED'
    }
step([$class: 'StashNotifier'])

}
}

Though i have done the above configuration when i create/update the PR, the build is not automatically triggered in jenkins. I guess the notification from stash to jenkins did not happen because we specify "origin/${pullRequestId}/from" in free style project. But i do not have that option to specify in pipeline job.

Tried few alternatives as below.

Instead of stash Pull Request Builder i tried with just "Poll SCM" project and specified cron job to trigger as "H/2 * * * *". Upon commits the job is triggered at jenkins. It means that for every commit the jenkins job gets triggered. But Jenkins should trigger the job when PR is created/updated.

I am missing something here certainly which could be basic and new to jenkins pipeline.

Any hint on achieving the desired behavior?

score 3 · Answer 1 · edited Oct 05 '17 at 18:24

3

In groovy script, you need to reference environment variables in a different way than in bash.

So probably this line is causing trouble:

branch: ('origin/pr/${pullRequestId}/from')

Try using:

branch: ('origin/pr/' + env.pullRequestId + '/from')

edited Oct 05 '17 at 18:24

Dan Cornilescu

6,780
2
21
45

answered Oct 05 '17 at 16:30

jgebal

31
2

score 3 · Answer 2 · edited May 22 '19 at 20:25

3

To expand on the answer above - try using:

branch: "origin/pr/${pullRequestId}/from"

Because in groovy, string interpolation is not done for simple strings - i.e. strings within single quotes. See http://groovy-lang.org/syntax.html#_string_interpolation for details on that.

edited May 22 '19 at 20:25

Pierre.Vriens

7,225
14
39
84

answered Dec 01 '17 at 12:33

Lars Immisch

31
1

MariaMironets · Answer 3 · 2019-02-11T12:17:42.957

Was the same problem, to achieve the desired result i created two jobs: PR Trigger (Freestyle Project) and PR Builder (Pipeline).

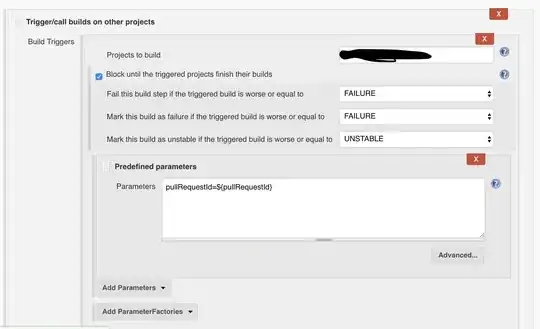

To PR Trigger i added Git plugin, Stash Pull Request Builder Plugin (same configuration didn't work for pipeline) and Parameterized Trigger Plugin (to pass pull request id to PR Builder pipeline; Project to Build - PR Builder).

To PR Builder i added Parameterized Builds Plugin.
