This question is related to Consul.
I am struggling with Consul for a while to get things working. To summarize I have 1 K8S and 1 Nomad cluster. I also have 1 Consul Server deployed externally of the above clusters. So far I have connected both of these clusters into the Consul Server.
Below are my Consul configurations
Consul Server:
cat /etc/consul.d/consul.hcl
data_dir = "/opt/consul"
client_addr = "0.0.0.0"
ui_config{
enabled = true
}
server = true
advertise_addr = "192.168.60.10"
bootstrap_expect=1
retry_join = ["192.168.60.10"]
ports {
grpc = 8502
}
connect {
enabled = true
}
Kubernetes: consul-values.yaml
global:
enabled: false
tls:
enabled: false
externalServers:
enabled: true
hosts: ["192.168.60.10"]
httpsPort: 8500
server:
enabled: false
syncCatalog:
enabled: true
toConsul: false
toK8S: false
Nomad config: nomad.hcl
data_dir = "/opt/nomad/data"
bind_addr = "0.0.0.0"
server {
enabled = true
bootstrap_expect = 1
}
advertise {
http = "192.168.40.10:4646"
rpc = "192.168.40.10:4647"
serf = "192.168.40.10:4648"
}
client {
enabled = false # Disable the client on the server
}
consul {
address = "192.168.60.10:8500"
checks_use_advertise = true
}
Below are my manifest files: Kubernetes
nginx-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
name: k8s-nginx
namespace: default
spec:
replicas: 1
selector:
matchLabels:
app: k8s-nginx
template:
metadata:
labels:
app: k8s-nginx
annotations:
'consul.hashicorp.com/connect-inject': 'true'
spec:
containers:
- name: k8s-nginx
image: nginx:alpine
ports:
- containerPort: 80
command:
- /bin/sh
- -c
- |
echo "Hello World! Response from Kubernetes!" > /usr/share/nginx/html/index.html && nginx -g 'daemon off;'
nginx-service.yaml
apiVersion: v1
kind: Service
metadata:
name: nginx-service
annotations:
'consul.hashicorp.com/service-sync': 'true' # Sync this service with Consul
spec:
ports:
- port: 80
targetPort: 80
selector:
app: k8s-nginx
pod.yaml
apiVersion: v1
kind: Pod
metadata:
name: multitool-pod
labels:
app: multitool
spec:
containers:
- name: network-multitool
image: praqma/network-multitool:latest
ports:
- containerPort: 80
NOMAD: nginx.nomad
job "nginx" {
datacenters = ["dc1"] # Specify your datacenter
type = "service"
group "nginx" {
count = 1 # Number of instances
network {
mode = "bridge" # This uses Docker bridge networking
port "http" {
to = 80
}
}
task "nginx" {
driver = "docker"
config {
image = "nginx:alpine"
# Entry point to write message into index.html and start nginx
entrypoint = [
"/bin/sh", "-c",
"echo 'Hello World! Response from Nomad!' > /usr/share/nginx/html/index.html && nginx -g 'daemon off;'"
]
}
resources {
cpu = 500 # CPU units
memory = 256 # Memory in MB
}
service {
name = "nginx-service"
port = "http" # Reference the network port defined above
tags = ["nginx", "nomad"]
check {
type = "http"
path = "/"
interval = "10s"
timeout = "2s"
}
}
}
}
}
K8S pods
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
k8s-nginx-68d85bb657-2tgz7 2/2 Running 0 19h 30.0.1.103 k8s-cluster3-worker1 <none> <none>
multitool-pod 1/1 Running 0 101m 30.0.1.26

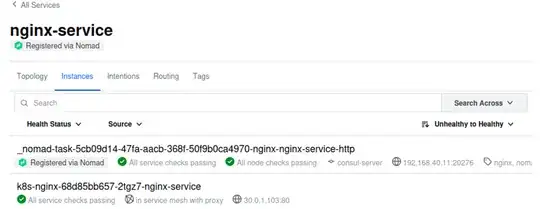

Only k8s-nginx-68d85bb657-2tgz7 has consul sidecar proxy running along it (2/2). Other pods are not a part of service mesh. I am trying to test the load balancing and fail over between K8S and Nomad through Consul. In Consul UI I can see that the services are available as below screenshot.
Since I am using the same service name for both K8s and Nomad the pods behind it are available inside the same service name (nginx-service)
When I try to curl to the k8s-nginx-68d85bb657-2tgz7 from multitool-pod or from the host I am getting curl: (52) Empty reply from server error. This is the same when I try to curl to the pod's IP or curl nginx-service.
curl http://192.168.60.10:8500/v1/catalog/services | jq
{
"consul": [],
"nginx-service": [
"nginx",
"nomad"
],
"nginx-service-sidecar-proxy": [],
"nomad": [
"http",
"serf",
"rpc"
],
"nomad-client": [
"http"
]
}
curl http://192.168.60.10:8500/v1/catalog/service/nginx-service | jq
[
{
"ID": "cb3ad82f-ce59-36c7-b1fc-7b5adb672411",
"Node": "consul-server",
"Address": "192.168.60.10",
"Datacenter": "dc1",
"TaggedAddresses": {
"lan": "192.168.60.10",
"lan_ipv4": "192.168.60.10",
"wan": "192.168.60.10",
"wan_ipv4": "192.168.60.10"
},
"NodeMeta": {
"consul-network-segment": "",
"consul-version": "1.19.2"
},
"ServiceKind": "",
"ServiceID": "_nomad-task-5cb09d14-47fa-aacb-368f-50f9b0ca4970-nginx-nginx-service-http",
"ServiceName": "nginx-service",
"ServiceTags": [
"nginx",
"nomad"
],
"ServiceAddress": "192.168.40.11",
"ServiceTaggedAddresses": {
"lan_ipv4": {
"Address": "192.168.40.11",
"Port": 20276
},
"wan_ipv4": {
"Address": "192.168.40.11",
"Port": 20276
}
},
"ServiceWeights": {
"Passing": 1,
"Warning": 1
},
"ServiceMeta": {
"external-source": "nomad"
},
"ServicePort": 20276,
"ServiceSocketPath": "",
"ServiceEnableTagOverride": false,
"ServiceProxy": {
"Mode": "",
"MeshGateway": {},
"Expose": {}
},
"ServiceConnect": {},
"ServiceLocality": null,
"CreateIndex": 80705,
"ModifyIndex": 80705
},
{
"ID": "",
"Node": "k8s-cluster3-worker1-virtual",
"Address": "192.168.50.11",
"Datacenter": "dc1",
"TaggedAddresses": null,
"NodeMeta": {
"synthetic-node": "true"
},
"ServiceKind": "",
"ServiceID": "k8s-nginx-68d85bb657-2tgz7-nginx-service",
"ServiceName": "nginx-service",
"ServiceTags": [],
"ServiceAddress": "30.0.1.103",
"ServiceTaggedAddresses": {
"virtual": {
"Address": "10.107.180.39",
"Port": 80
}
},
"ServiceWeights": {
"Passing": 1,
"Warning": 1
},
"ServiceMeta": {
"k8s-namespace": "default",
"k8s-service-name": "nginx-service",
"managed-by": "consul-k8s-endpoints-controller",
"pod-name": "k8s-nginx-68d85bb657-2tgz7",
"pod-uid": "330f7c09-fe33-41a3-8d11-ce98d358c873",
"synthetic-node": "true"
},
"ServicePort": 80,
"ServiceSocketPath": "",
"ServiceEnableTagOverride": false,
"ServiceProxy": {
"Mode": "",
"MeshGateway": {},
"Expose": {}
},
"ServiceConnect": {},
"ServiceLocality": null,
"CreateIndex": 80732,
"ModifyIndex": 80846
}
]
When I try to even curl to k8s-pod IP it gives me curl: (52) Empty reply from server
k exec -it multitool-pod -- curl 30.0.1.103
curl: (52) Empty reply from server
command terminated with exit code 52
As per the journalctl -u consul I can see the below error
consul-server consul[36093]: 2024-09-14T21:52:54.635Z [ERROR] agent.http: Request error: method=GET url=/v1/config/proxy-defaults/global?stale= from=54.243.71.191:7224 error="Config entry not found for \"proxy-defaults\" / \"global\""
I assume this can be an issue related to Proxy, but unfortunately I do not get it how to resolve or where to implement it although I tried to refer the docs, hence seeking your kind support.
I also came across upstream, but I am only trying to curl to the service name to see how the requests are routed. I am not developing a frontend or backend services where backend is added as an upstream.
I am stuck with this thing for a while now and therefore seek your kind advice.
Thank you!
