Xbee data messed up with 2 sensors communicating to master

Asked Sep 18 '14 at 07:18

Active Sep 18 '14 at 08:47

Viewed 69 times

I have an Xbee Master and slave set up as below (from Arduino website):

This way works great for 1-1 communication. I'm getting my serial data perfectly. However, when I had one more slave, the data is completely messed up. How exactly can I get data from both sensors? (I thought, the master xbee module would separate node data by new line but it seems to be mixing the bits itself.)

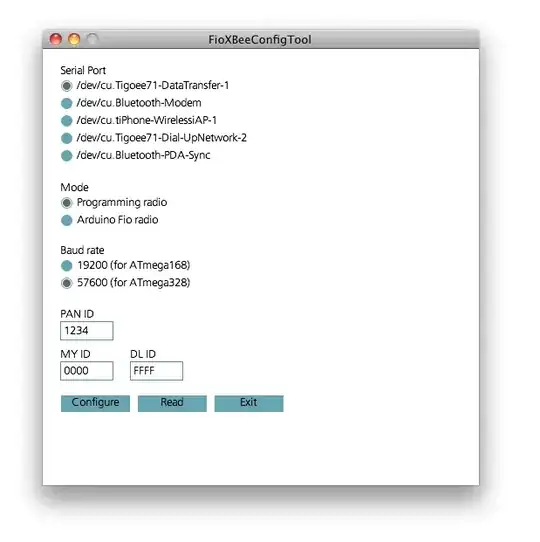

Master enter image description here

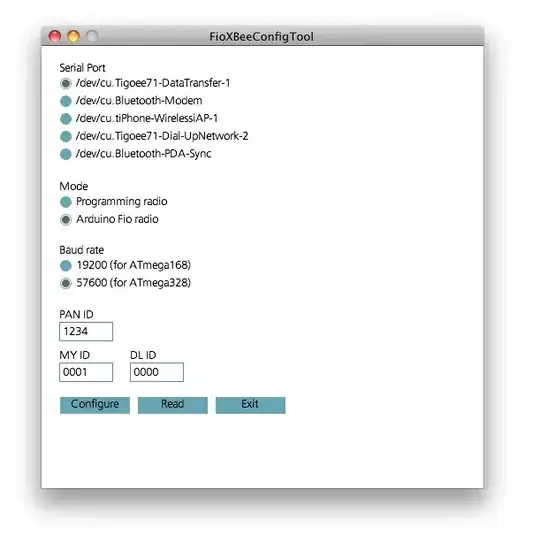

Slave enter image description here

edited Sep 18 '14 at 08:47

peterh

asked Sep 18 '14 at 07:18

Raaj

What are the addresses of the two slaves? – Andy aka Sep 18 '14 at 07:25
MY ID is 0001 and 0002. Their DL ID points to the master – Raaj Sep 18 '14 at 13:47
@Raaj so two sensors are using the same serial port? If so, I guess you need to establish some protocol between them so they don't send at the same time. – chwi Sep 24 '14 at 07:07

Xbee data messed up with 2 sensors communicating to master

0 Answers0
