3

Neon lamps have higher breakdown voltage than its operating voltage. When brokendown, it acts like a zener at its operating voltage.

http://upload.wikimedia.org/wikipedia/commons/thumb/b/b0/Doutnavka.svg/330px-Doutnavka.svg.png

user1502776
  • 385
  • 1
  • 7
  • 14
  • The only one that springs to mind is a Neon lamp. – Majenko Feb 11 '15 at 10:31
  • Gas lasers behave the same way, if I remember correctly, but well they are just improved neon lamps. – Arsenal Feb 11 '15 at 10:57
  • A thiristor is a typical current controlled negative resistance device (S shaped lambda diode) – GR Tech Feb 11 '15 at 16:44
  • http://encyclopedia2.thefreedictionary.com/S-Type+Negative-Resistance+Semiconductor+Device , https://en.wikibooks.org/wiki/Circuit_Idea/Negative_Resistance , https://en.wikibooks.org/wiki/Circuit_Idea/Negative_Differential_Resistance . Gas ionization would have the current "S" characteristics, Arc welding, Lightning, Florescent lights, Spark gap, etc. Gas discharge limits frequency response. Emulating "S" curve with a circuit can overcome that. – Optionparty Feb 11 '15 at 17:43

2 Answers2

6

How about a diac or sidac diode? They have somewhat similar curves but in different ranges.

http://en.wikipedia.org/wiki/DIAC

Nedd
  • 10,391
  • 17
  • 24
0

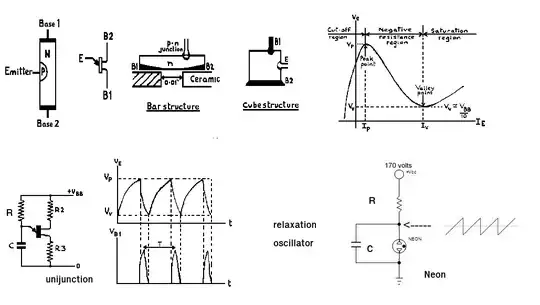

I suppose you might consider a unijunction transistor.

enter image description here

JIm Dearden
  • 19,036
  • 30
  • 40
