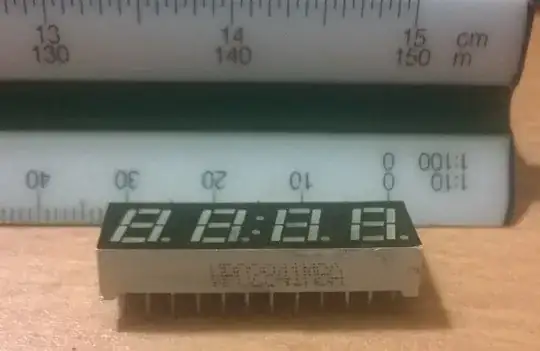

Does anyone have the datasheet for this display there is no serial number or Ebay link. A student came to me with this 4 digit 7 segment LED, there are 12 pins in one side, and nothing on the other side. Model number is, WP02841MGA.

7

Community
  • 1
narzan
  • 295
  • 2
  • 15
  • 3
    Send the aforementioned student to search for the datasheet. He might learn that a component without a datasheet is junk. – Nick Alexeev Apr 29 '15 at 18:00
  • 1
    The part number is right there. It's probably a custom ordered part, just look for similar part numbers. – Passerby Apr 29 '15 at 18:08
  • 1
    Just search for similar part with same pin configuration. Many are pin compatible. Use a multimeter with a diode test to make sure. In case of internal series resistors, use a ohmmeter and a laboratory power supply and light the LEDs up. – FRob Apr 29 '15 at 18:27
  • Nick Alexeev it's a cute kid right :D ! Passerby " It's probably a custom ordered part" exactly you can't found anything with that number. FRob i search allot, all what i found is 6 legs in each side, there is no 12 legs in one side Spehro Pefhany that's exactly what i will do :) Passerby ok thanks for you too – narzan Apr 29 '15 at 19:06

2 Answers2

11

If you just want the pinout, poke around with a 5V supply with a 1k resistor in series and in minutes you'll have it.

With 12 pins it's a multiplexed display with at least four commons. Could be common anode or common cathode, some of the positions (colon, some or all decimal points) may not be populated.

Spehro Pefhany
  • 397,265
  • 22
  • 337
  • 893
9

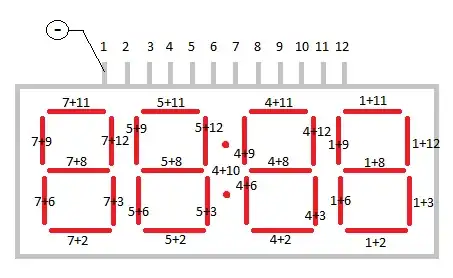

after testing, this is the result :) thanks everyone - if someone have problem just use this always the (-) is the first number
