I found an old box with 4 ESP8266 module. I initially thought they were ESP8266 -05, but this chip only has 4 pins (with a separate ground) instead of 5 pins (with a separate ground). This is pretty old, so I'm wondering if it was a difference chipset before they upgraded it?

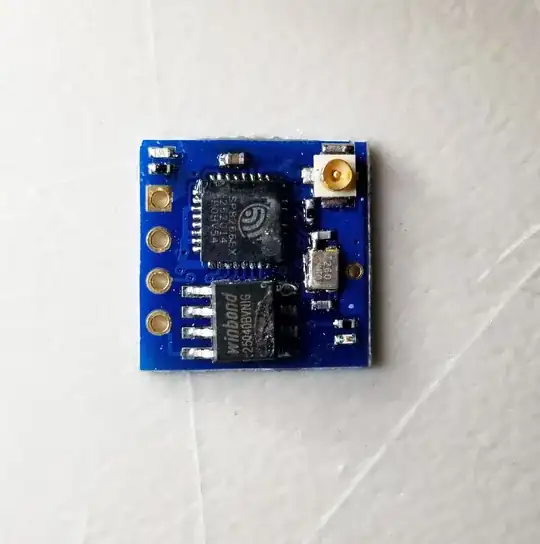

enter image description here

If anyone could give me any information (specifically schematics) for this thing, that'd be great.

Thanks!

ntgCleaner
  • 350
  • 1
  • 4
  • 14
  • @replete Thanks for your comment. I edited the question, I'm just re-learning everything and didn't want to ruin anything by testing. I think I found that it's just a variant of the -05, but with out the reset pin. – ntgCleaner Dec 17 '17 at 00:54

1 Answers1

5

I have several of these. They are an ESP-05 without the reset pin.

From the top the pins are Gnd, RXD, TXD, Vcc (3.3V).

Pinout graphic, from the [ESP8266 Wiki](http://www.esp8266.com/wiki/lib/exe/fetch.php?cache=&w=434&h=325&tok=c0ee97&media=05-4-04.jpg)

ThreePhaseEel
  • 8,978
  • 4
  • 27
  • 41
Dean Franks
  • 3,711
  • 2
  • 13
  • 21
  • Thank you Dean! A quick follow-up question. Once connected to vcc and gnd, does this piece blink a single red LED. If so, have you been able to do anything with it using an arduino? and which version? – ntgCleaner Dec 17 '17 at 05:17
  • When powered up the red led blinks once. The board uses the standard serial command set for the stock ESP firmware. I have not used these modules with Arduino but I don't think you will have any issues (at least with the arduino library that uses the ESP boards as a serial device). I have no idea whether you can reprogram the ESP8266 using the ESP Arduino environment. – Dean Franks Dec 17 '17 at 17:46
  • Thank you Dean! I noticed the LED blink when powered on, though I'm wondering, Should this chip be sending a signal with power only? I have limited experience with the ESP-01 and I know once it's powered up, it transmits an SSID. Do I need to program this chip just to transmit? – ntgCleaner Dec 19 '17 at 13:25
  • General getting started with the ESP-05 and Arduino: http://datafirmwarejuk.blogspot.com/2016/08/esp-05-mini-esp8266-wifi-module.html – Dean Franks Dec 19 '17 at 15:46
