I am trying to make a load using resistor that can bear 12V 4A rated values. I have calculated a resistance but that has a low resistance and high power rated resistor i.e. 3 ohms 48 Watt resistor. It is impossible to find this so please help me regarding the load resistance. Thankyou
Asked
Active
Viewed 487 times
0
-
12 volts at 5 amps is 2.4 ohms. – Andy aka Jul 14 '18 at 09:32
-
Sorry!! i calculated it for 10A rating.. Andy aka – user191834 Jul 14 '18 at 09:39
-
I've got some nichrome resistance wire from a toaster in my junk pile... – Jasen Слава Україні Jul 14 '18 at 11:48
2 Answers
1
A resistor network will distribute the power dissipation across multiple resistors. Using three 10ohm 25W resistors in parallel will result in a 3.3ohm 75W resistance.
Ignacio Vazquez-Abrams
- 48,488
- 4
- 73
- 103
0
Andy aka
- 456,226
- 28
- 367
- 807
-
tell me if you have to design a load for 12V and 10 amp rating. So what values would you prefer? – user191834 Jul 14 '18 at 10:22
-
-

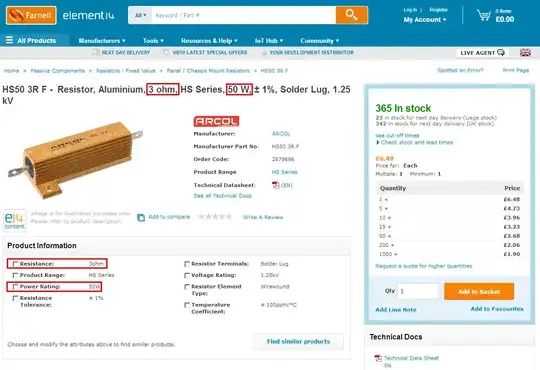

I think you should look on Farnell (as per the link in my answer) and select the appropriate value resistor and do a farnell search. – Andy aka Jul 14 '18 at 10:38
