I'm looking throw bq76940 datasheet and I've found such connection of sense resistor:

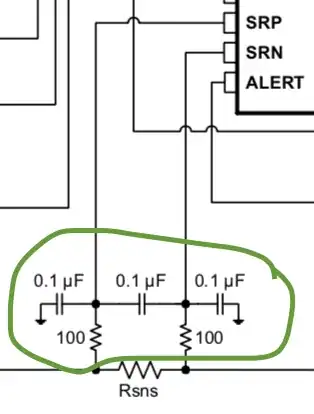

Sense resistor connection

What is the purpose of the additional resistors and capacitors? Why all 3 capacitors are required?

ft232r
  • 33
  • 5
  • 1
    I think noise filtering. It will avoid controller from doing weird things if current is drawn in pulse from the battery. – Indraneel Aug 03 '19 at 20:49

1 Answers1

2

It's a lowpass filter. It filter out common mode noise (resistors and those capacitors connected to the earth) and differential noise (mid capacitor and resistors)
