Wired headset circuit

Question

I'm trying to understand how mobile phone headsets work. I figured out that the electret mic gets supplied with 2.7V by the phone.

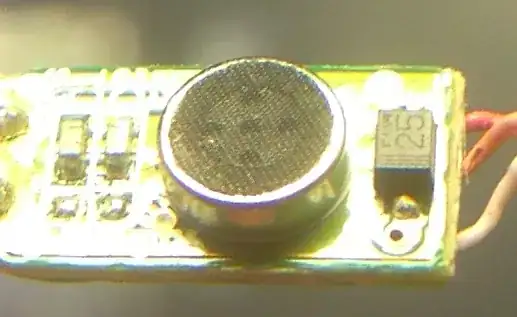

Opening a headset revealed the following PCB: enter image description here

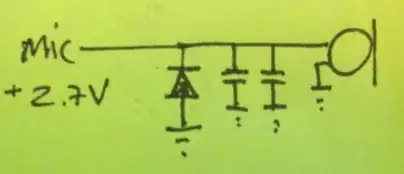

I looked and measured and came up with the following circuit: enter image description here

Shouldn't there be at least one cap in series with the mic?

score 6 · Answer 1 · answered Nov 15 '12 at 11:58

Electret microphones need a biasing voltage to operate: The 2.7 Volts you measured.

If there is a capacitor in series with the microphone, this would block DC, thus there would be no biasing voltage.

If the preamplifier / buffer inside the phone body needs the bias voltage removed, a capacitor would be placed in that part of the circuit, past the bias voltage provision stage, i.e. on the PCB inside the mobile phone handset.

score 0 · Answer 2 · answered Apr 27 '13 at 19:54

0

The diode is there to clamp the voltage to 2.7V, it's a zener. The two caps are bypassing any AC on the line, one at low freq, the other at high freq.

answered Apr 27 '13 at 19:54

Ed Davis

69
1
1

3

You want the AC on the line - it's the microphone signal! – Connor Wolf Apr 27 '13 at 22:54
@ConnorWolf - The caps could be removing non-audio frequencies. – Joel B Mar 31 '14 at 19:59
