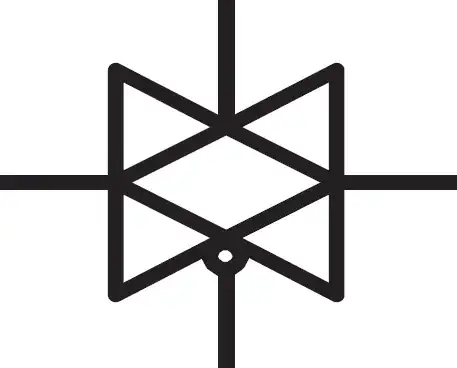

What is this symbol? I think it is some kind of amplifier or buffer, but I was unable find any information using search terms like "overlapping triangles," "intersecting triangles," or "double triangle symbol."

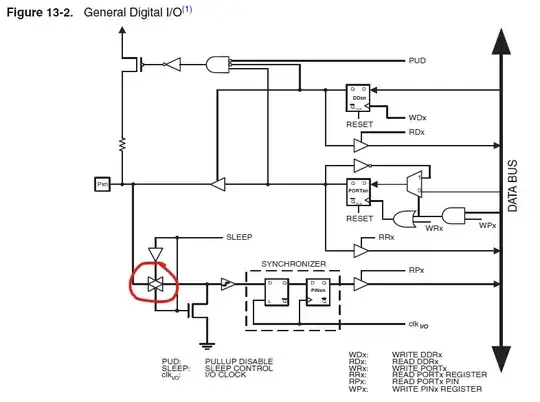

For context, I came across it in the ATmega2560 datasheet (pdf), in Figure 13-2 on page 68, reproduced below:

enter image description here

2012rcampion
  • 604
  • 4
  • 16

1 Answers1

16

It's a MOS pass/transmission gate.

2012rcampion
  • 604
  • 4
  • 16
DKNguyen
  • 56,670
  • 5
  • 69
  • 160
  • 3
    Just want to point out that "Bow tie" seems to be the search name that OP missed for that symbol. – JPhi1618 Apr 14 '20 at 18:23
