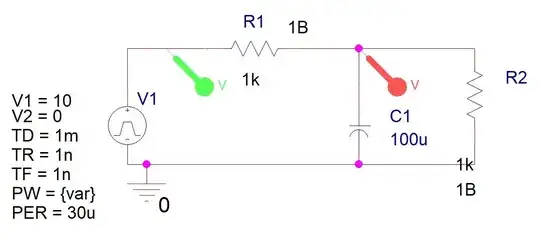

How do I gradually vary the pulse width in the "VPULSE" model? I tried using parametric sweep but it does not produce the correct waveform or I don't know how to do a parametric sweep in transient mode. Here is a screenshot of the schematic. I want the "PW" to vary from 1u to 15u gradually so that I can see the capacitor voltage waveform with respect to time.
Asked
Active
Viewed 330 times
1
launchin2space
- 157
- 12
-
Does this help? – a concerned citizen Jun 15 '20 at 15:52
-
It does help. So I do need additional circuit to realise the gradually varying pulse width. It should work with PSPICE. – launchin2space Jun 15 '20 at 15:54
