I want to add 2-pole momentary push-button (switch) for my covers.

Integration goes through a NodeMCU and ESPHome.

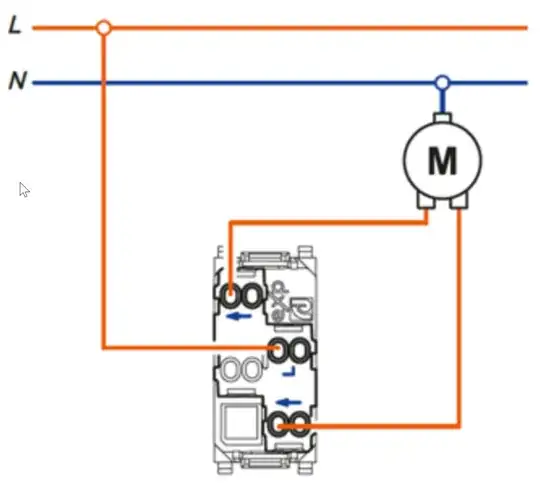

I'm having a hard time understanding the schematics for this switch:


I'm not sure how to connect the inputs/outputs to a NodeMCU in order to have a response in my logs. (Only one pin for example D1 to be reactive when I hold my push button.)

JRE
  • 71,321
  • 10
  • 107
  • 188
lonelydev101
  • 111
  • 1
  • Do you intend to connect your NodeMCU to the line voltage? Your example circuit shows how to connect a reversible motor to line voltage (like the power outlets in your home.) Are you just trying to connect the switch to your NodeMCU, but without powering the motor? – JRE Apr 06 '21 at 14:53
  • 1
    What are your "covers?" – JRE Apr 06 '21 at 14:59
  • Are you legally allowed to do mains voltage electrical work? If not, or don't know to wire it, I suggest being extremely careful, as if you manage to burn your house down, the insurance company might not cover it. – Justme Apr 06 '21 at 15:08
