Schematic notation conventions

Question

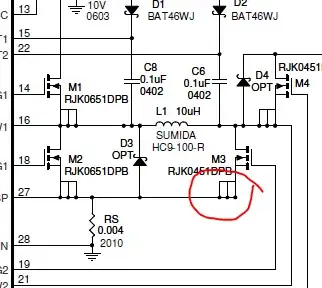

I am studying this reference design, and see the following 4 connections (only 1 is circled):

enter image description here

At first glance its telling me to use a large trace and/or multiple traces; but I am not sure as there are no notes. What could this possibly mean?

score 15 · Accepted Answer · answered Feb 15 '13 at 18:52

15

It means that there are multiple pins on the device to handle high current or for lower inductance. They are wired together at the same potential.

answered Feb 15 '13 at 18:52

placeholder

30,170
10
63
110

ohhhhh.... wow, that was a simpler than I though. http://documentation.renesas.com/doc/products/transistor/r07ds0076ej_rjk0651dpb.pdf shows the symbol :D – hassan789 Feb 15 '13 at 18:55

score 3 · Answer 2 · edited Feb 15 '13 at 23:40

3

It's also a way to create nets into different pads (electrically equivalent in that component) when you transfer the schematic to PCB.

It's not necessarily a way to express the need for a wide trace, as for example, some SMB and coaxial connectors have 4 ground pins but they are not for the sake of current but to ensure a more complete sheilding.

edited Feb 15 '13 at 23:40

placeholder

30,170
10
63
110

answered Feb 15 '13 at 19:59

Joan

1,403
1
9
11

1

And some SMT connectors have extra pins for mechanical strength. – gbarry Feb 15 '13 at 23:44
