Should I be worried about setting both inputs high? It seems that the simulation I made with Tinkercad doesn’t care of a short circuit happening, that’s why I need a word from an expert

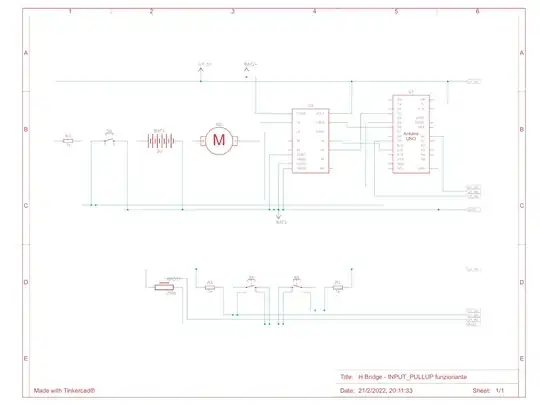

Here the schematic

I posted the schematic, hoping that this could further explain

SamGibson
  • 17,870
  • 5
  • 40
  • 59
Lorenzo Fiaschi
  • 1
  • 3
    That depends on what are you driving. Could you show some schematics or detailed description? – klokaj Feb 20 '22 at 17:24
  • 1
    Your schematic looks like it lacks some (vertical) lines. Problem in the export? – winny Feb 21 '22 at 19:51
  • It was automatically made by Tinkercad. Those lines are absent because are different parts of the circuit ( the one below I assume is a detailed schematic for buttons connected to Arduino pins) – Lorenzo Fiaschi Feb 23 '22 at 21:21
