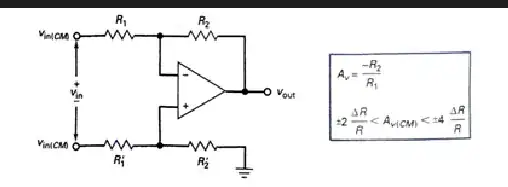

My question is about differential amplifier. I don`t know \$2\frac{\Delta R}{R}\$ proof.
I don't know this proof. Why \$Av(cm) = 2 \frac{\Delta R}{R}\$?

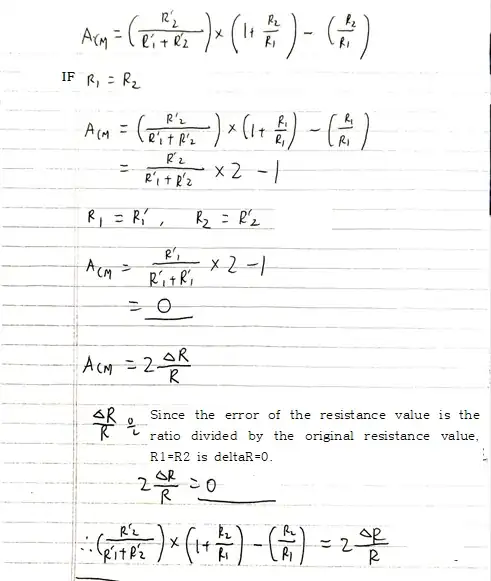

This is my solution.
Asked
Active
Viewed 108 times
3
SDG
- 31
- 2
-
1Conditions must be added. 1.R1=R_1 2. R2=R_2 – SDG Apr 26 '23 at 02:11
-
Sounds like a homework question. Have you tried to solve this yourself? Please show us your work so far. – Elliot Alderson Apr 26 '23 at 14:46
-
It's not a homework. I thought it was easy, so I did it myself, but it was harder than I thought, so I asked – SDG Apr 26 '23 at 15:38
-
Is there a definition of $\Delta R$? – electroGeek Apr 27 '23 at 05:02
-
There is no definition of $\Delta R$. – SDG May 01 '23 at 13:42
