Practical inductor result can I get in PCB layout

Question

I have a physical coil inductor of 1 mm width and 10 cm length. It has 10 spiral wound turns. Its inductance is 1.05 uH.

Can I get the same result from a PCB layout?

Welcome! You need to ask a question. – winny Apr 27 '23 at 12:22 — winny, Apr 27 '23 at 12:22
Please draw and dimension your coil. – Andy aka Apr 27 '23 at 12:22 — Andy aka, Apr 27 '23 at 12:22

score 0 · Answer 1 · answered Apr 27 '23 at 13:58

0

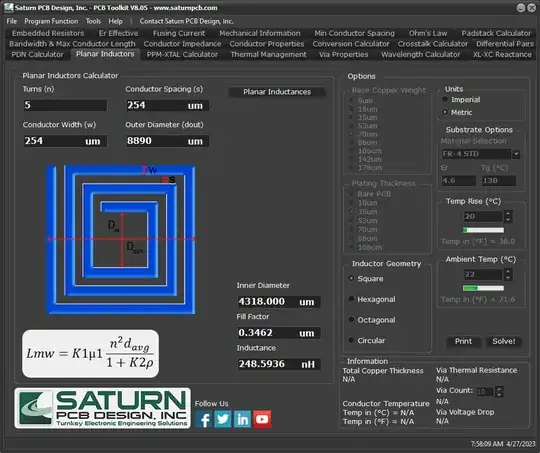

I use a program called PCB Toolkit. Free on the web. There is a page that talks about inductors.

answered Apr 27 '23 at 13:58
