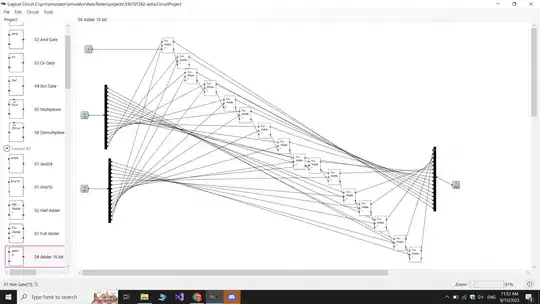

I did this 16 bit adder in a simulator. Something is wrong. The automatic check returned FAIL. What did I do wrong? How can I fix it?

enter image description here

JRE
  • 71,321
  • 10
  • 107
  • 188
Sonya Lyu
  • 21
  • 1
  • 5
    Please draw a neat version of this circuit. It is not clear which lines are connected or just in the background, which makes spotting the mistake nearly impossible. – Hans mitm Flammenwerfer Aug 15 '23 at 09:01
  • At the very least, if your buses are numbered starting from the bottom, arrange your adders in the same order! – Dave Tweed Aug 15 '23 at 12:00

1 Answers1

2

You maximised lines crossing in the drawing.
This makes it difficult to spot missing connections, such as the carry from bit 1 to bit 2 (starting bit numbering at 0).

It may be easier to design a 4-bit full adder - and the 16-bit adder from 4-bit adders.
