Eigenfreuency of beam

Question

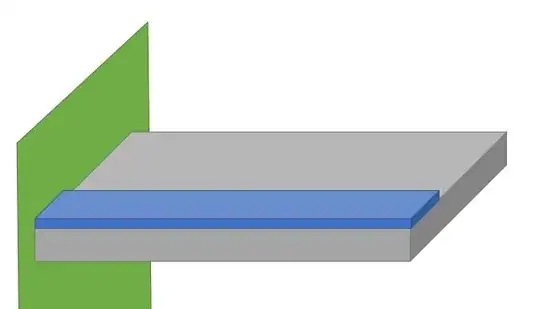

How would you calculate the eigenfrequency of such a cantilever?

Answer 1

Are you looking for a single number for one particular beam, or a closed form solution for any possible combination of dimensions?

If the former, the easiest will be ANSYS (or Abaqus or NASTRAN or any other commercial FEA software). Model the two different beams as shell elements. With shell elements you can use a single layer for each sub-beam. With brick elements, you'll need at least 7 layers for each sub-beam, which means a longer computation time.

If the later, you'll probably want to pick up a graduate level textbook on the vibration of continuous systems. You'll need to set up and solve partial differential equations. It is probably easiest to set up two differential equations that are linked by a boundary condition that the motion at the interface is the same.

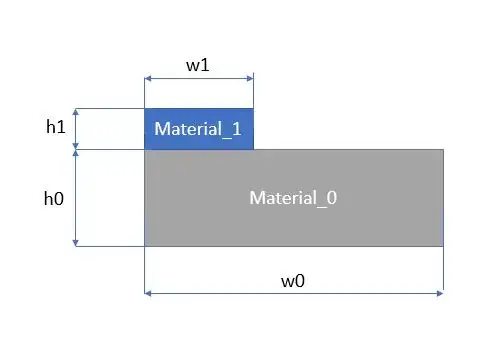

Material 0 would have to be modeled as a plate (https://en.wikipedia.org/wiki/Bending_of_plates). If $w1<<w0$,then Material 1 could potentially be modeled as an Euler-Bernoulli beam (https://en.wikipedia.org/wiki/Euler%E2%80%93Bernoulli_beam_theory), which would be a little easier. But otherwise they'd both have to be plates.

Calculating the eigenfunctions in closed form would be pretty hard. Instead, if $h1<h0$ and $w1<w0$, you could probably use the Raleigh-Ritz method (https://en.wikipedia.org/wiki/Rayleigh%E2%80%93Ritz_method) using the eigenfunctions of the Material 0 plate by itself as the basis functions.

Edit to address your comment:

The link you gave shows the math for a beam. A defining characteristic of a beam is that it is a one dimensional problem. i.e. the deflection at the left of the beam is the same as at the right of the beam. the only coordinate that matters is the length along the beam (x in the link's notation). What you are asking about in this question is one step more complicated. In your case, the deflection at the left side can and will be different than the right side, because of the extra material making the left side stiffer. So you have a two dimensional problem. This is called a plate.
