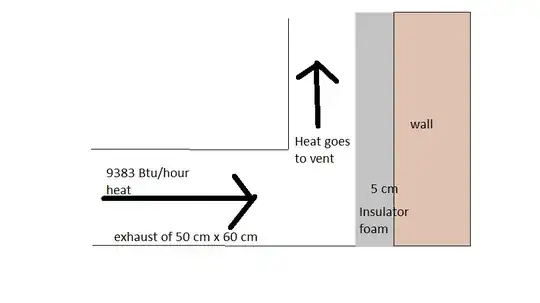

heat flowI have a machine that has power output of 2750 watt, which is blasted to a insulator foam with thermal resistance of 2.1 m2 kelvin/watt where the insulator is 5 cm thick and it drives the heat into ventilation and out of the roof.

I want to make sure that the insulator can withstand the heat blast from the machine. So if I know that 2750 watt can output 9383 btu/hr where 1 watt outputs 3.412 btu/hr, how can I be sure that the insulator can withstand the heat without it getting spread out? regards

Edited additional info: exhaust temp is 40 degree Celsius, room temp is 25 degree Celsius, and outside temp is 32 degree Celsius.

Flammability limit: lower limit for hydrocarbon gas (part of the foam) 1.8% by volume upper limit for hydrocarbon gas: 8.5 % by volume flash point of hydrocarbon gas: -84 degree Celsius

Volume of the exhaust = 50x 60 x 200 cm cube = 600,000cm cube

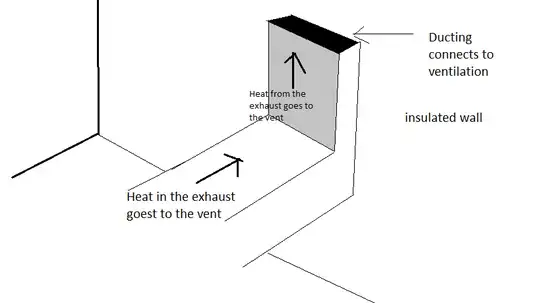

machine exhaust from different angle

ethereal1m
  • 123
  • 3

1 Answers1

1

You need to investigate the flammability properties of the insulating materials : wood can be a good insulator if it is dry, but it burns well etc.

Solar Mike
  • 16,242
  • 1
  • 27
