I need to build some type of scale where one can place four 600mL beakers on it and measure out its weight down to a milligram level of accuracy. I'm doing this so I can dose a very small amount of liquid (2 microliters) into the beakers at a time. The problem is that load cells and essentially all resistance-based force sensors are only accurate down to ~.03 - .05% of their full-scale load (at best). I've looked into piezoelectric sensor solutions but it seems that they are ill-suited for detecting static loads.

I'm completely open to having 4 separate scales, but the problem of having an accurate enough load cell will still exist.

Is there any way to detect changes in weight to this level of accuracy? Any suggestions?

tripleee
  • 128
  • 6
AndrewP
  • 51
  • 1

2 Answers2

2

Actually, 600mL of liquid (water?) is about 600g, not 10kg, so it makes selecting an off-the-shelf balance a lot easier. Likewise, 2ul is about 2mg so a 1mg accuracy should be good enough. Based on this something like this Sartorius balance should do it:

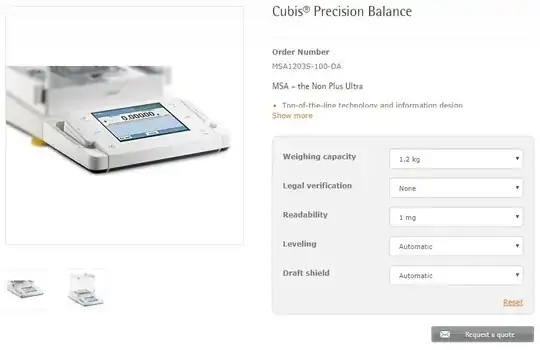

enter image description here

Disclaimer: although I have nothing to do with balances, I do work for a company which is part of the Sartorius group.

am304
  • 1,841
  • 13
  • 22
0

Based on the information that you provided I would recommend looking at a Wheatstone Bridge Circuit type of arrangement. It is my experience that using similar type if circuitry can help increase accuracy (need conformation)

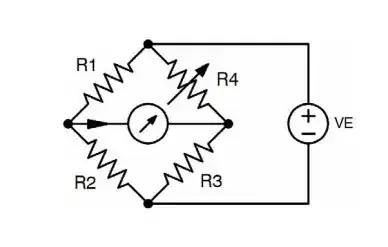

enter image description here

For starters I would suggest taking a look at single point bridge.

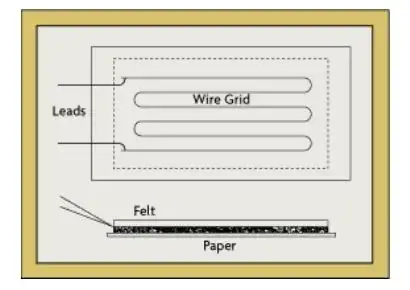

enter image description here

For your other electronic circuits I would suggest looking at instrumentation or difference amplifier circuit together with ADC which will feed a micro controller similar to the circuit block below.

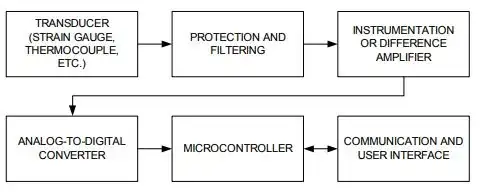

enter image description here

For the sensing element a pressure sensor base weight sensing scheme or stand strain gauge system might still be you best option.

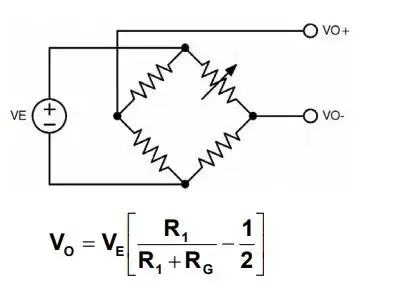

enter image description here

Take a look at Load Cells, Force Sensors and Torque Transducers. There is good chance you will find a good solution.

I also suggest that you take a look at Tactile Pressure Sensor Technologies from Sensor Products Inc

Below are some good references for you to get started.
