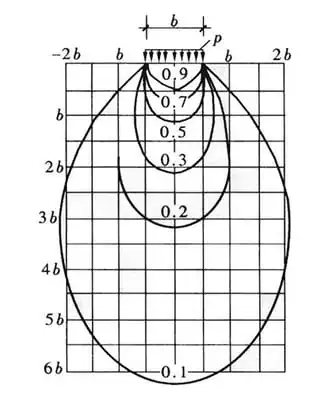

How can I plot such a graph with Excel or Matlab by a uniform load q, and how can I see where the stress becomes 0.1q?

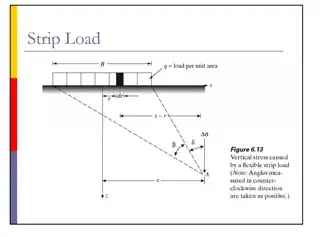

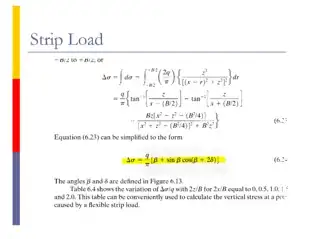

The loaded area and the equation is on the picture shown below, equation is highlighted in yellow

enter image description here

enter image description here

enter image description here

Murad Nazari
  • 147
  • 2
  • 6
  • 3
    The plotting in Matlab can certainly be done with a contour plot once you include the equations in your question. – Chris Mueller Apr 01 '15 at 21:57
  • @MuradNazari This is similar to some instantly recognizable geotech charts that can be found in any textbook. The two methods I am aware of to create these charts use either the Bousinesq equations (example) or the Westergaard equations (example). However, your chart does not match either of those charts. I need to know what method it is using. – Rick Apr 02 '15 at 21:18
  • 1
    @GlenH7 Ah ha! I found what method is being used here: it's Bousinesq for the stress increase under a flexible strip loaded footing (the method can be found in Das, Principles of Geotechnical Engineering). Since it is now obvious what method is being used I think you can reopen the question. Probably needs to be edited though. I can do that but not today. – Rick Apr 02 '15 at 21:28
  • @GlenH7 Thanks for mentioning Boussinesq (is it one or two s?). I use it very often in the context of contact pressures and deflections. – John Alexiou Apr 07 '15 at 21:06

1 Answers1

0

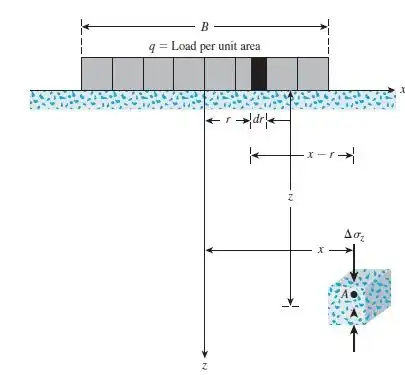

You can use this formula to calculate it based on the x, horizontal distance and z vertical distance. Simply put z=0 and increment it say by 0.1 in excel while x starts from B/2. enter image description here

Formula enter image description here

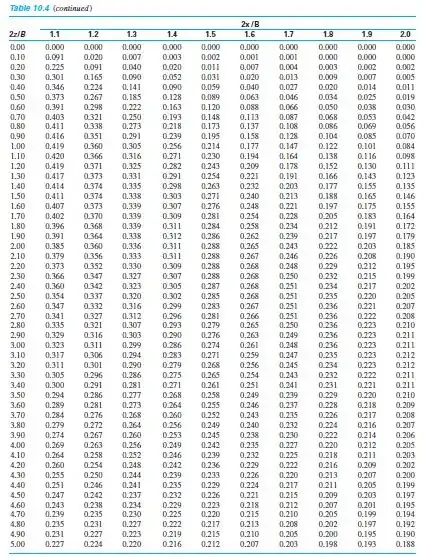

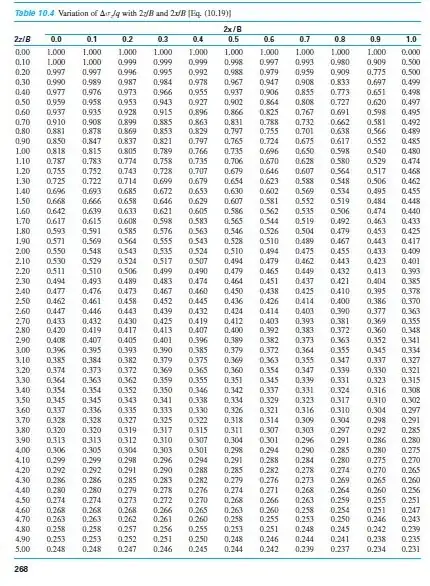

sample calculations enter image description here

enter image description here

Amir
  • 131
  • 2
