In lab we have Struers Tegrapol-21 grinding and polishing machine. I use it for sample preparation. Usually I put 6 samples at once and prepare them with sample holder. However today I need to prepare 3 samples. I checked brochure and it's not clear. Manual wasn't helping either.

I'm trying to understand why do I use two different type of holders. Ease of loading is an issue however I'm looking to learn is there a difference in grinding/polishing performance. Why and when I should choose one over the other?

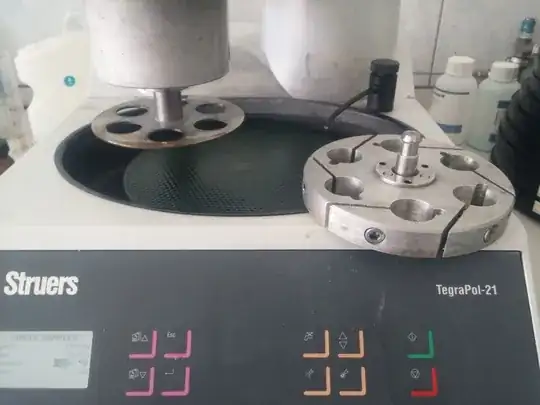

Here is photo of single holder (left), sample holder(right) and Tegrapol-21.

Tegrapol-21

Question

  1. Can I use sample holder for 3 samples?
  2. Can I use single holder for 3 samples?
  3. If both of them is possible which one is preferred?
Gokce Mehmet AY
  • 702
  • 3
  • 15

1 Answers1

1

I personally have the tegrapol 11 and I use it with the tegraforce 1

Our units sample mover plate holds three specimens simultaneously (concept is the same though). Google tegrapol 11 and tegra force 1 for images if this is unclear.

Many times I run my sample mover plate both with only one and only two specimens at a time merely leaving the last hole(s) empty.

  1. If I were working with this unit and I were concerned with using the sample mover plate sans all 6 holes being filled: I would distribute the three specimens (skip every other hole).

  2. I would NOT use the single sample mover plate for three specimens.

  3. As with 2. I personally would use the six-holed sample mover plate for three specimens.
