For example in yellow:

enter image description here

if all bars were rectangular, the entige frame would tend to skew. To prevent this, these diagonal bars are mounted.

What is the term for them?

Dims
  • 213
  • 3
  • 8

5 Answers5

16

Braces. They come in a variety of shapes.

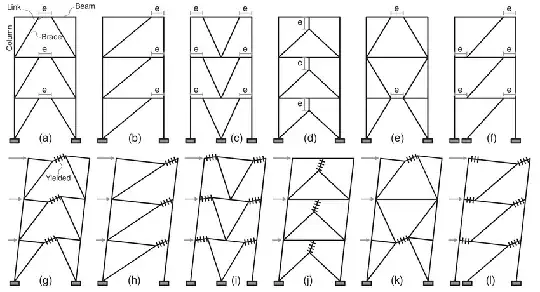

K frames, X frames, eccentric frames, etc.

.

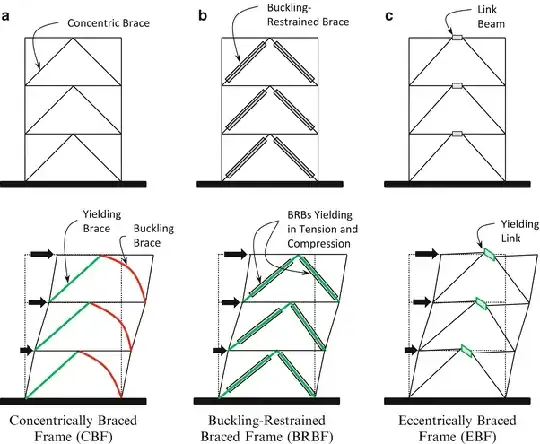

enter image description here

.

three different types

.

.

kamran
  • 23,517
  • 2
  • 22
  • 42
4

The generic term is Bracing.

You will often find it further qualified as Cross Bracing, Diagonal Bracing or Triangular Bracing, depending on the whim of the person doing it.

Neil_UK
  • 420
  • 2
  • 11
2

One common name is shear ties.

NMech
  • 24,340
  • 3
  • 38
  • 77
2

Another common term, used in many trades, is bracing, such as diagonal bracing.

Solar Mike
  • 16,242
  • 1
  • 27
  • 33
0

A term I recall from undergraduate Mechanics classes is Truss https://en.wikipedia.org/wiki/Truss

ramjoshi
  • 9
  • 2
