Dynamics Simple Pulley System - Stuck on the Process

Question

Have spent hours poring over this homework question but am having difficulty getting the right process going to solve the problem. I don't really know where to start, and I'd really be grateful if someone could show me the ropes (pun intended ^_^). There are two components to the question.

(a) What is the tension force $T$ in the cables at this instant (Newtons)

(b) What is the net horizontal thrust force required to produce the truck's motion? This includes drive force from the wheels, rolling resistance and air resistance.

My (flawed, obviously) attempt at A went something like this:

1. Draw FBD for block A

2. Apply Newton's Second Law, where tension in cable is constant throughout its length $F_{y,A} = 2T-m_A\cdot g = m_A\cdot a_A$

3. Length of cord is constant, so $L = -2X_A+X_T + C$, and $-2a_A+a_T = 0$, so the acceleration of block A is $\frac{1}{2}a_T = 1.2\text{ m/s}^2$.

4. Rearranging equation from (2) provides $2T = m_A*g + \frac{1}{2}m_A\cdot a_T$, and then T = 456.5N.

Part B I struggle with altogether, because I don't have a clear process in my head to tackle the problem.

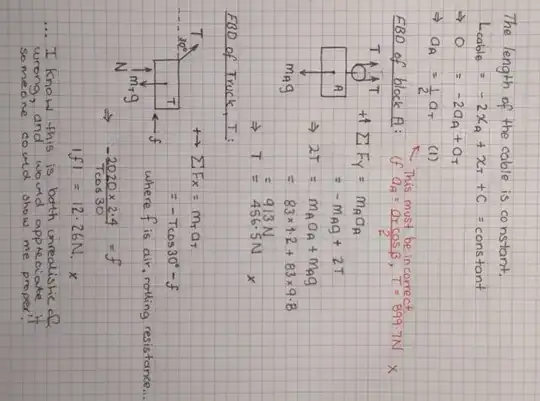

Edit~ A written attempt at a solution - Not sure how to factor in the angled a(T) as proposed...

Answer 1

The cord from the truck to the first pulley is on a diagonal, so the length of that section does not increase linearly with the trucks motion:

$$L=-2X_A+\sqrt{{Y_t}^2+C^2}$$

Where $Y_t$ is the horizontal distance from the pulley to the truck, and C is the vertical distance. Defined by:$\frac{Y_t(t=0)}{\cos(\beta(t=0))}=\frac{C}{\sin(\beta(t=0))}=10m$

Differentiating with respect to time yields:

$$0=-2V_A+\frac{V_t\,Y_t}{\sqrt{Y_t^2+C^2}}$$

And differentiating a second time yields:

$$0=-2a_A+a_t\frac{C^2Y_t+{Y_t}^3}{({Y_t}^2+C^2)^\frac32}+\frac{C^2{V_t}^2}{({Y_t}^2+C^2)^\frac32}$$

From there one can solve for the acceleration of the block, and plug in.

Plugging in:

$$Y_t(t=0)\approx7.9m$$ $$C\approx6.1m$$ $$a_A(t=0)\approx3.2\frac{m}{s^2}$$ $$T(t=0)\approx540.6N$$

Interestingly there's a greater contribution to the acceleration from the angle of the cord changing due to the velocity (the ${V_t}^2$ term), then there is from the actual acceleration of the truck (the $a_t$ term). This makes sense if you think about how fast that truck is moving relative to the dimensions in the problem, and how relatively slowly the truck is accelerating.

Once one has the tension, the total thrust of the truck (ie the wheel trust minus all losses other than tension) will just be the net force in the horizontal direction plus the horizontal tension.

$$F_{net}=\text{Thrust}-T\cos(\beta)=m_t\,a_t$$

$$\text{Thrust}\approx 4825N$$
