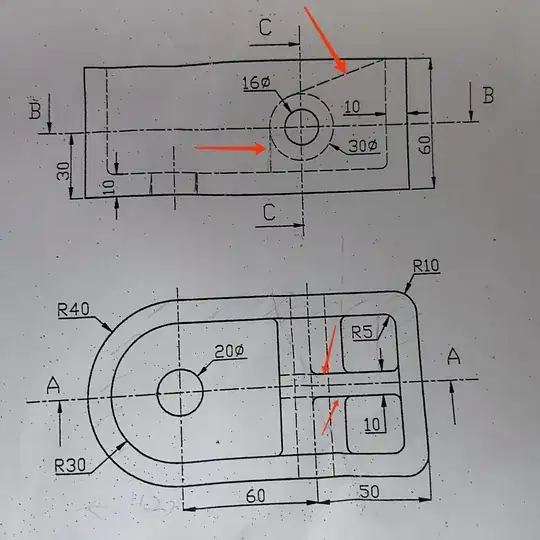

I don't understand what the hidden lines are nor the fillets tangent to the center line of the circles if someone can help with the 3d isometric that would help a lot. I

Youssef Mohamed
  • 173
  • 6

1 Answers1

4

This is just a stiffener that goes around the cylinder that runs across the walls

enter image description here

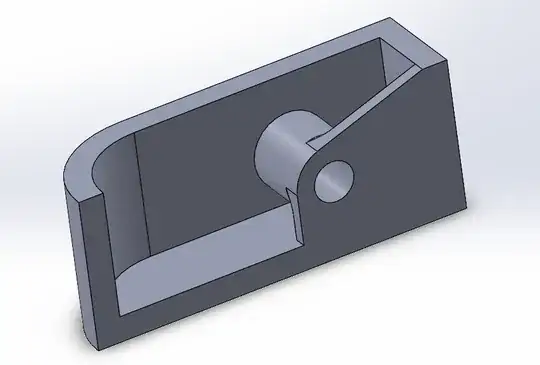

Section View

enter image description here

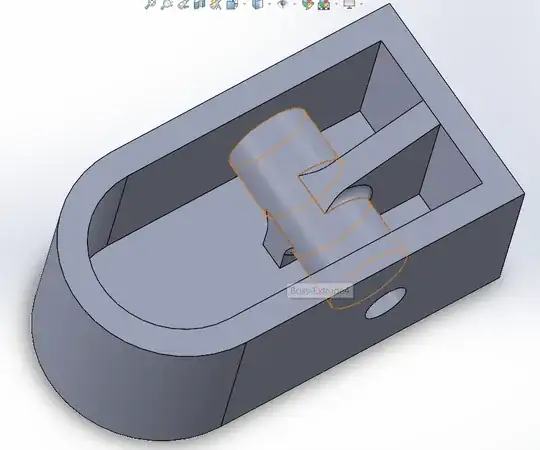

FUll isometric view
