8

I asked this in the physics stack but hopefully will get more interest here. So I understand that when driving on a curved path, the inner wheel must travel a shorter distance than the outer wheel. But why?

As the car begins to turn, both wheels want to continue rolling at the current speed in linear motion due to conservation of angular momentum. If the wheels are being driven by the engine, then the torque is equal to rolling resistance on both wheels so both maintain a constant speed. If the car is coasting, then both wheels are braked by rolling resistance by equal amounts. In order to change the speed of the inner and outer wheels, there must be additional torque(s), which must be different for the two wheels. What is this torque, and where does it come from? Assume that both wheels are rolling without slipping.

Transistor
  • 12,108
  • 2
  • 22
  • 32
Reese
  • 93
  • 1
  • 5

6 Answers6

9

TL;DR: The kinematic constraint imposes the redistribution of forces on the four wheels. This redistribution is permitted due to the car differential.

IMHO it is easier understand this if you first understand the difference between kinematics and kinetics.

  • kinematics: are about the geometry of motion (kinematics don't take into account forces or work).
  • kinetics: this is how forces and moments affect the motion --- and vice versa (i.e. if you know the motion determine the forces).

small interlude/example

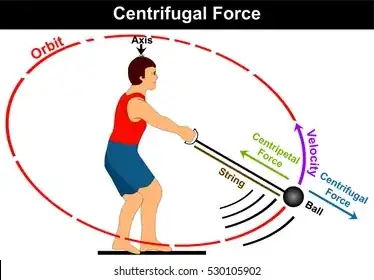

It is very common that first the kinematics is considered and then the kinetics are applied. Consider the following example of a hammer athlete:

enter image description here

Assuming:

  • the person and hammer is rotating at a constant angular speed $\omega$ and
  • the distance between the axis of rotation and the hammer is R
  • the string has no weight

then through the kinematics I know that the angular velocity is $\omega$, and the angular acceleration is $0$. And I can calculate at any time the angular position if I know the angular position at t=0.

Given the above information I can find out the force that the athlete has to apply on the string that is required for this motion to be accomplished. This is done through the use of kinematics. I.e. knowing the motion I can calculate the forces requires to produce this motion.

My point here is that:

the motion constraints can impose/determine the required forces.

Car example

In the example you are providing, (the car during a turn without slipping), kinematics play the primary role. I.e. the rear inner wheel needs to travel a smaller distance over the same time compared to the outer wheel.

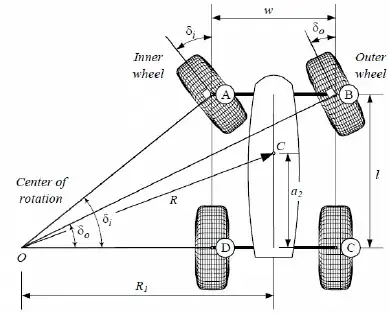

enter image description here

if the symbols in the above image are used, then for a turn of angle $\theta$ the distance travelled is:

  • rear inner: $=(R-\frac{w}{2})\theta$
  • rear outer: $=(R+\frac{w}{2})\theta$

(When there is no sliding) Kinematics also determines the velocity and acceleration for each of the wheels.

After that point, since the position, velocity and acceleration for each wheel are known, then you can use the kinetics (inverse) to see what forces are required to produce that motion.

In this instance, what happens (even if you consider a rigid chassis and infinite stiffness car suspension), what happens is that the turning redistributes the vertical forces on each wheel. That changes the magnitude of the friction on each wheel (and also affects the rolling resistance although rolling resistance is not as important). However the magic is in the differential.

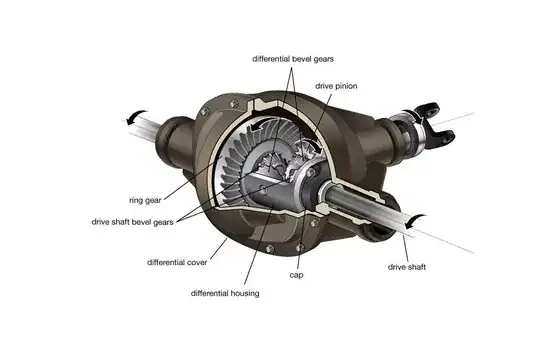

enter image description here

The differential allows (at the same time) each wheel to spin at its own velocity and also allows them to "communicate" (for lack of a better word) and distribute the power to each wheel.

In the particular case of the open differential, when the car is jacked up, and the engine shaft is not rotating, then rotating one wheel has the effect of rotating the other wheel in the opposite way. So, the angular momentum and is preserved.

idling car during turn

I will focus on this case.

So, when an idling car is turning, each wheel is free to spin at its own rate, and at the same time if the outer is spinning faster, the open differential makes the inner wheel spin faster (see the video in this answer). At this point it is important to remind that the torque that slows down the wheels when the car is coasting is from the rolling resistance on each wheel (which is the longitudinal component of the friction). To simplify matters, we'll assume that the rolling resistance is zero (perfectly round wheel) and all the friction force between the wheel and the road is available as traction force.

The traction force

  • in the linear acceleration/decel is parallel to the acceleration.
  • In the case of uniform circular motion, the traction acts as the centripetal force (pulling the car inwards).

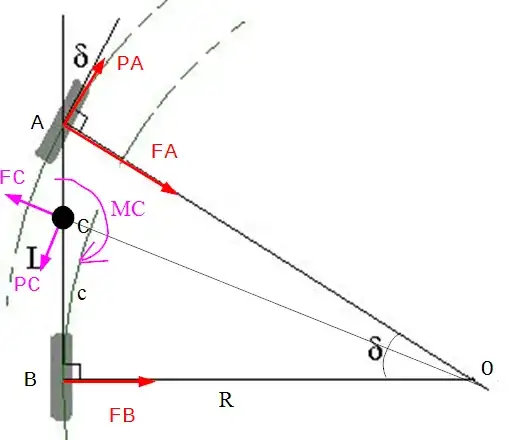

When the car is coasting, the force of the rolling resistance is usually small compared to the radial component (centripetal force). The moment caused by wheel traction (friction forces) in the radial direction (Centripetal) is what causes the rotation moment that turns the car. (See image below)

enter image description here

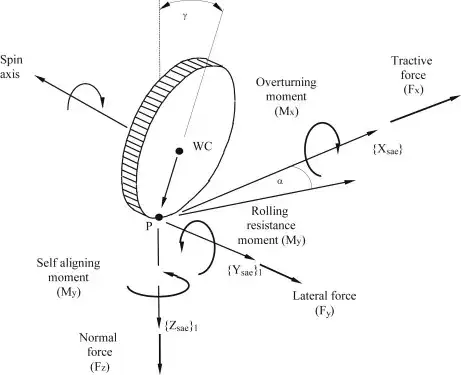

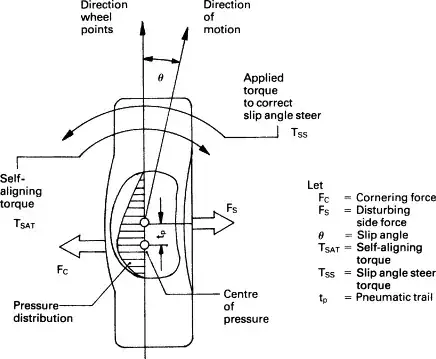

Also it is important to note that the contact of a wheel is not a single point but a contact patch that has a complex behavior.

enter image description here enter image description here
Forces on wheel system contact patch

car accelerating through the turn

When the car is using the engine power, then there is an additional factor that affects the kinetics (dynamics). I won't delve into this case because there are a number of factors that will also affect this outcome (namely FWD, RWD, 4WD etc). However bottom line is that there is added torque from the engine. In that case again the differential allows spliting of the torque (and redistribution of power) so that the kinematic constraints are satisfied.

NMech
  • 24,340
  • 3
  • 38
  • 77
6

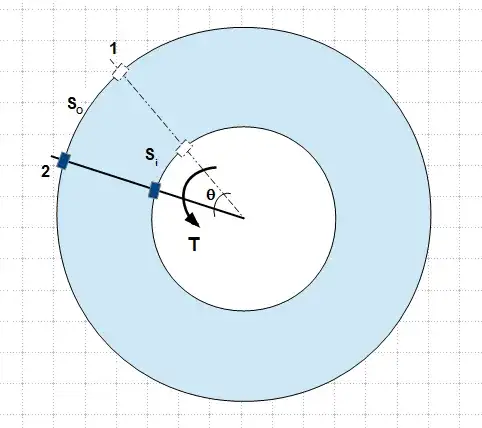

This is a simple explanation/observation. A two-wheel dolly rotates along a circular path by a constant torque (T). The position of the wheels changed from point 1 to point 2 in one second (t = 1s), what you can say about the distance that each wheel has traveled, and what is the speed of each wheel at the turn?

enter image description here

ADD: I think it is imperative to understand what the "differential" in a car does. Here is an explanation I found that is easily understood by a non-automotive engineer or mechanical engineer:

What does a differential do inside car?

"The main purpose of this differential component is of 2-folds:

- Changes the direction of torque in a car that is heading to the drive wheels of the car

- Allows for the drive wheels in a car to turn at various speeds at any time

Normally, all of the torque of an engine usually goes into just one transaxle or transmission, and it sure needs to be directed at some point to the two wheels of the car. Now, the side gears of a differential are the ones that will mesh with the larger pinion gears to actually perform this function.

The spider gears are the ones that allow for one wheel of a car to turn faster than the rest, thereby preventing wheel scuff and binding whenever you are taking a corner or bend with your car." https://naijauto.com/car-maintenance/differential-in-car-3018#:~:text=Latest%20news%20articles%201%20What%20is%20a%20Differential%3F,...%203%20Simple%20signs%20of%20a%20bad%20differential

Another quote:

"Differential" - "As part of the front and/or rear axle assembly, the differential plays an integral role in how your car makes turns. The differential is designed to drive a pair of wheels while allowing them to rotate at different speeds. This function provides proportional RPMs between the left and right wheels. If the inside tire rotates 15 RPM less in a turn than going straight, then, the outside tire will rotate 15 RPM more than going straight." https://www.sunautoservice.com/what-is-a-differential-on-a-car/

Hope thess helps.

r13
  • 8,333
  • 3
  • 10
  • 29
6

In order to change the speed of the inner and outer wheels, there must be additional torque(s), which must be different for the two wheels. What is this torque, and where does it come from?

If the car is turning, there must be a torque relative to the center of mass of the car (note that torque is always relative to some axis; the torque on the car as a whole is different from the torque on the wheels). Suppose the car is turning to the left. Then the rotation involves the left front wheel moving backwards relative to the COM of the car, and the right front wheel moving forward. This then means there are torques relative to the axles of the wheels (there's one shared axle, but the differential means that to some extent it acts like two axles).

Angling front tires -> sideways force on front wheels -> torque relative to car COM -> rotation of car -> lateral movement of wheels -> torque relative to axles.

Acccumulation
  • 281
  • 1
  • 3
3

Let's imagine a car turns to the left 360 degrees, a complete clockwise circle.

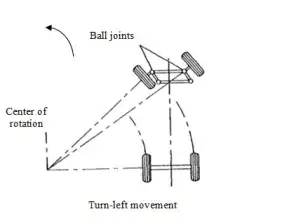

If we look at the tracks left, we see two concentric circles (For the front wheels, and another pair for the rear wheels, as shown on the diagram ), inner wheels turn in the inner circle which is smaller and outer wheels turn in the outer and larger circle. As per the diagram.

  • Because the outer track's radius is larger its circumference is larger than the circumference of the inner circle.

  • This means both the front wheel and rear wheel on the outside circle, the right hand, have to cover a larger distance.

  • The front wheels are free, so the right front wheel turns more than the left front wheel.

  • The differential just unlocks the rear wheels, allowing the right rear wheel to turn more than the left wheel, or else the rear wheels would skid and could perhaps break the rear axel.

  • The differential does not impart any different force on the wheels, it just allows them to divide the transmission rotation, differently.

Edit

After OP.s comment.

Let's say the differential is removed for maintenance and let the rear wheel turn freely. If tow the car into a turn we see the outer wheels turn faster. the tighter the turn the greater the difference of the speed.

The differential just allows this. The steering pulls the front wheels to left with a force F to left. (in our example) $$F* D_{D=wheelbase}=Torque$$

This torque causes the rear wheels to turn at different speeds. Let's imagine the steering could turn left all the way to 90 degrees. Then the right wheel would accelerate forward and the left one backward.

.

differential

kamran
  • 23,517
  • 2
  • 22
  • 42
2

This video went a long way to help me understand how differentials work and how resistance on one wheel translates to motion on the other.

Around The Corner - How Differential Steering Works (1937)

Pawtuxet
  • 21
  • 1
1

Sorry for my bad English.

I believe that the confusion originates from a misunderstanding of the nature of rolling resistance. In the question the following is stated:

If the wheels are being driven by the engine, then the torque is equal to rolling resistance on both wheels so both maintain a constant.

That can only be stated if we assume the wheels are weightless, which in turn make the system undetermined meaning that from the known physical equations we cannot figure out the speed of the wheels, so additional assumptions like no slipping should be introduces. In such a case an explanation for the different rotation speed goes like this: since that wheels cannot slip and the outer radius is larger than the inner one we conclude that the outer wheel is rotating faster.

That is totally unsatisfactory if we want to understand the nature of rotation but allows us to ignore some aspects of the rolling resistance.

If we do not assume the weightlessness of the wheels there is no equilibrium between rolling resistance and the engine torque, which in the end results in different rotation speeds of outer and inner wheels.

The question of why rolling resistance of outer and inner wheels differ is far too complex to describe in depth but i hope that the following line of thought, although somewhat incorrect, would lead to understanding: when car starts to turn the outer wheel starts to cover more distance meaning more micro collisions with the road particles with more speed so the rolling resistance is more for the outer wheel.

Fedor Lebed
  • 11
  • 1
