Adhesive is applied to "soft" ballistic fabrics (like kevlar or even fiberglass) in order to decrease bulge when being hit by a projectile.

What would be the effect of gluing layers of ballistic fabrics together (effectively, making it stiff), with a powerful adhesive, on the fabric's ability to resist penetration? Obviously, the adhesive itself will also resist the penetration, but that is not what I ask.

EDIT: Conecring Solar Mike comment about inertia, on howitworksdaily it said that "[kevlar] has a high tensile strength. This means it takes a huge amount of energy to make its fibres stretch even a little ... most will absorb the energy of the bullet by stretching a small amount."

So, does the stiffness from gluing will weaken the kevlar by not allowing it to strech, or it will actually make it stronger, because now it's harder to make them strech?

Example of kevlar properties from Fibermax:

Yarn Type 1111
Linear Density (nominal) [dtex] 1260
f 1000
Linear Density (effective) [dtex] 1350
Finish Content [%] 0.7
Elongation at Break [%] 3.10
Breaking Tenacity [MPa] 2987
Breaking Strength [N] 280
Modulus [GPa] 91
Tube Size [mm] 290x94
Number of Bobbins x Weight per Bobbin [kg] 6 x 4.5 / 90 x 4.5

Alaychem goes to Codidact
  • 121
  • 5

2 Answers2

4

A fast moving projectile has a large amount of kinetic energy. Of course, protecting someone or something from the projectile is all about dissipating as much of that energy as possible before the projectile would reach its target.

Kevlar becomes a good option for bullet resistant armor because of its high tensile strength in these scenarios specifically (as well as other qualities that is has). This is partly due to the material qualities it has on its own and partly due to the way in which it is woven.

Imagine a close-up view of a bullet passing through sheets of woven fabric. Some of the individual strands will break as the bullet passes through the first layer. Some of them would prefer to shift aside to allow the bullet to pass through. In the absence of any adhesive material, this first sheet is now useless once the bullet has passed through it. It has slowed the bullet somewhat but is completely ineffective once the bullet has passed through. With adhesive, though, it can still provide support to the material that has not yet allowed the bullet to pass through. These factors are finely tuned in armor products to allow for the best possible amount of bulge and overall bullet resistance with consideration to weight and other factors.

Farris
  • 123
  • 4
2

Fabric based ballistic projection works by distributing load of it's force, kinetic energy perpendicular to it's direction.

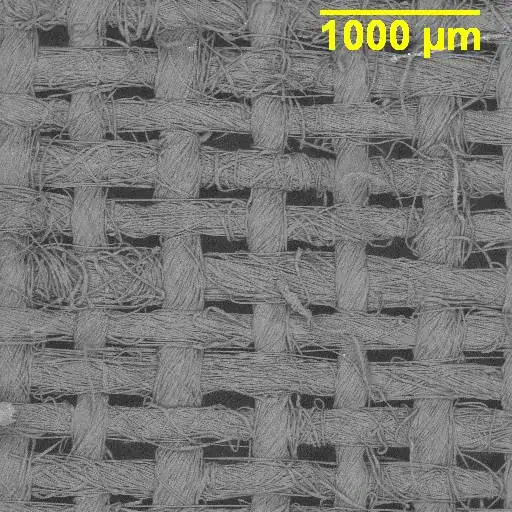

Adhesives are already in use for bonding such fibers. Adhesives act to prevent the thread weaves from being undone, like poking a needle thru a shirt, often the hole displaces the fiber weave enter image description here

LazyReader
  • 625
  • 4
