Steel bracket fixing spacers on a wall

Question

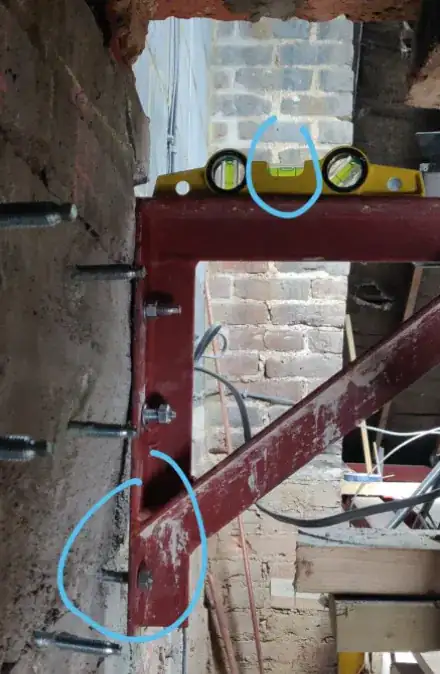

What could I do to address the uneven vertical wall (not plumb) behind the bottom of the steel bracket?

Would you fill in the gap with sand/cement and once dried tighten the bolt or use steel plates and spacers?

Answer 1

Best result needs both of your suggestions. Looks like you have enough thread on the installed bolts, so inserting shims to suit the gap/s(drilled thin steel plates) is a high strength solution. The finished job can be cosmetically improved by rendering the wall to achieve a vertical face and conceal the shims. Form and function both satisfied!

Answer 2

The proper/best way is to begin with installing the brackets over a wall that is plumb, which can be achieved by plastering. If you do not wish to remove and reinstall the already-in-place anchor rods, the best choice is to use the shim plate for the depressed areas, however, the final result is difficult to control, as the wall may contain both bumps and depressions in a random manner.

Another way is more tedious but with a guaranteed better result - determine a plumb plane that is level with, or slightly beyond, the highest bump, then install the brackets using both shim plates and non-shrink grout after setting the nuts in according to the plumb plane.

Answer 3

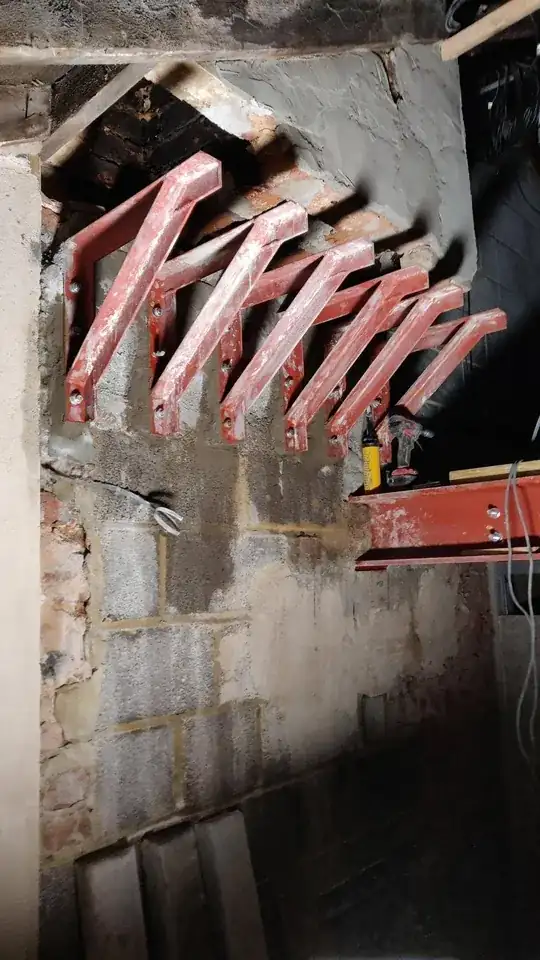

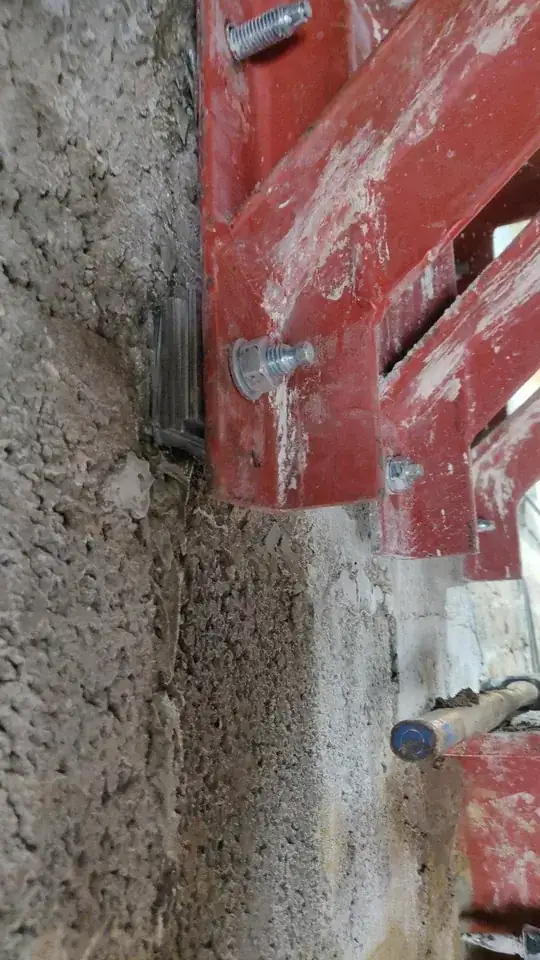

According to the suggestions, I share the result.

Hopefully, the load is distributed evenly against the concrete wall.
