The male connection on a reusable whip cream dispenser cannister where charger cartridges are placed appears to be a standard size, as caps that are used to push and hold the charger cartridge are sold individually and work with any brand whip cream dispenser.

I am trying to figure out what type of male connection that is. I measured it at roughly 21.7mm or 0.858 inches. Using a thread gauge tool I measured the thread at 2.0 metric or 13 US TPI.

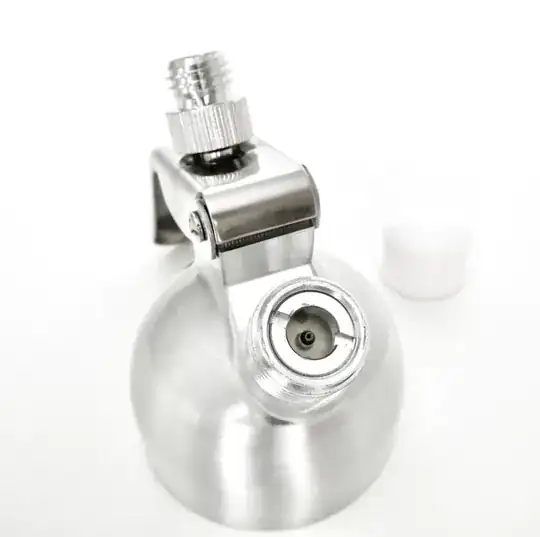

In the picture below it is the male connection at the bottom/center.

Male Charger Connection

I am trying to determine what connection component is needed to attach a pressurized line to the cream dispenser but so far have not been able to find anything that matches my measurements. Is anyone aware of what I will need to form this pneumatic connection?

I tried a CGA-320 nut which was too small for this connection. I also tried a 7/8" tank supply line fitting, which was too large.

Here are examples of existing pressure regulators that fit that connection. They appear to either be a bronze adaptor piece with a push connect pneumatic fitting, or a single component.

connection type 1

connection type 2

Tom Edwards
  • 11
  • 1
  • 3

2 Answers2

1

The gas connection on the whipped cream dispenser is M22*2. Actually had to reach out to a Chinese manufacturer for that because GreatWhip didn't ever get back to me.

I am going to be trying to find some adaptors or something to fit to a standard N2 tank. If I am successful, I'll post back.

BrewerJack
  • 11
  • 1
0

I suspect it is G5/8 thread, Go aliexpress and search "Beer Nut" and you should see something usable.

lam
