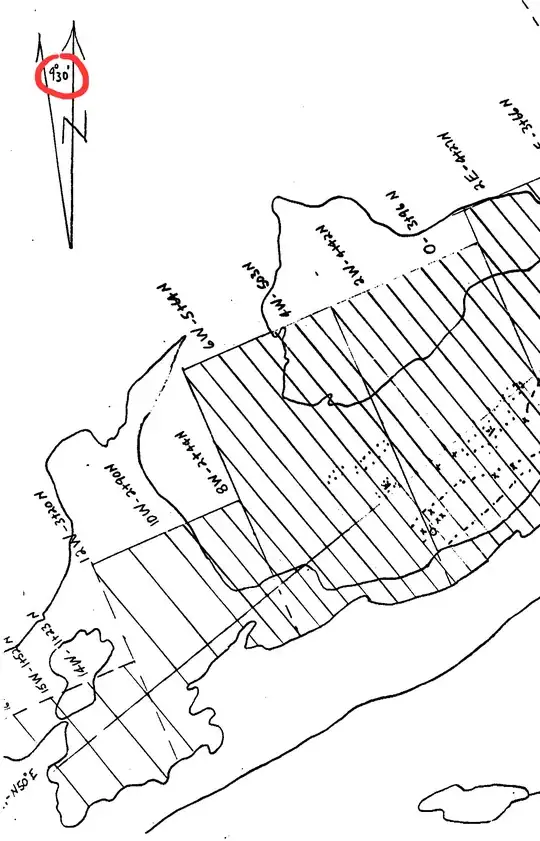

1984 mining grid map; Eastern Ontario, Canada; proprietary info, so I can't show the whole map.
What does the notation circled in red indicate?
Is the angle related to magnetic declination? Or does it pertain to the grid lines on the map?
Asked
Active
Viewed 39 times
2 Answers
3
Typically, the arrow marked N is true north while the arrow angled to the left indicates magnetic north. The declination is indicated by the angle 9 degrees 30 seconds placed within the angle of the arrows.
Thomas Perry
- 31
- 1
0
In a related GIS Stack Exchange post (Georeferenced image type supported by ArcGIS Pro and QGIS), @GBG said:
Those values are consistent with magnetic declination. You can view a webmap here for confirming that yourself. Keep in mind that declination has changed over the years....
