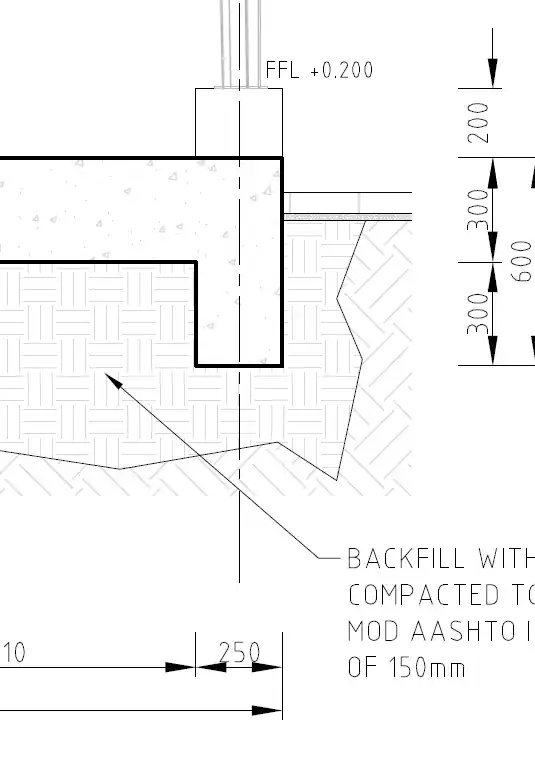

What is the down-stand beam called at an edge of a surface bed or raft foundation? It is not exactly a grade beam or stem wall. It is more like a toe.

enter image description here

grfrazee
  • 3,597
  • 1
  • 18
  • 33
SlydeRule
  • 1,226
  • 2
  • 13
  • 24

2 Answers2

6

What is the down stand beam called at an edge of a surface bed or raft foundation? It is not exactly a grade beam or stem wall. It is more like a toe.

This is probably a regional nomenclature thing, since I'm seeing quite a few ways for naming this. If you call it a grade beam, I don't think anyone will take it amiss.

Examples below of different ways of naming it.

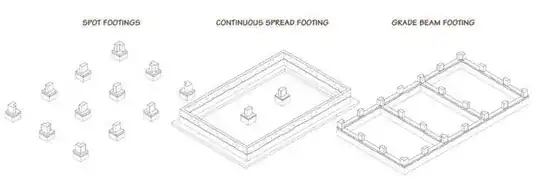

Grade Beam
 grade beam
(source)

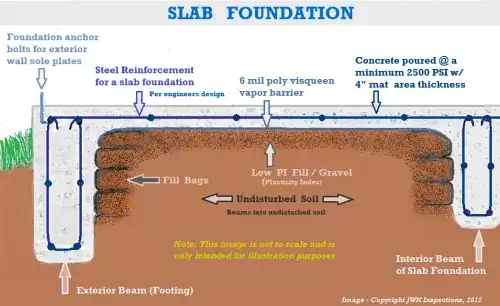

Exterior Beam
 exterior beam
(source)

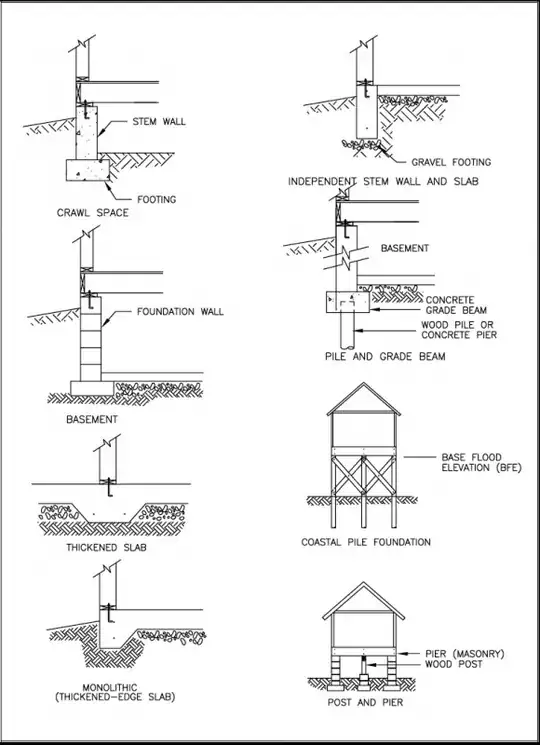

Stem Wall or Thickened-Edge Slab
 stem wall
(source)

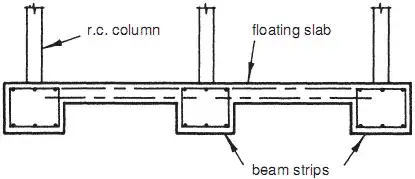

Beam Strip
 enter image description here
(source)

grfrazee
  • 3,597
  • 1
  • 18
  • 33
0

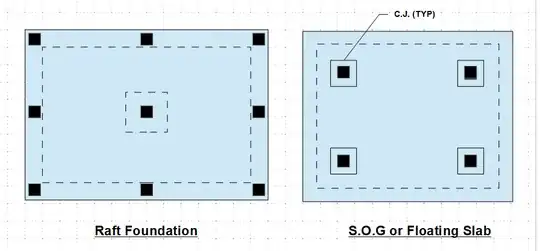

It is an "edge beam", or "grade beam", in a raft foundation, and a "downturn" of a slab-on-grade. The former is a structural component, usually spanning between columns, thus more massive and heavily reinforced. The latter is a strip footing or purposed to stiffen the slab edge and prevent outward migration of the subgrade.

enter image description here
