I am starting to learn how to use ANSYS APDL. So I don't have much knowledge in the software.

I have modelled a cantilever beam (with beam188 elements) and the only load that i have applied was the self weight.

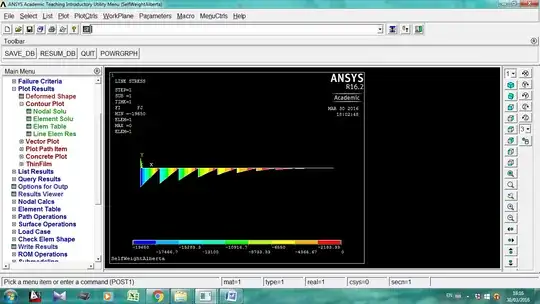

When I ask for the shear force diagram (element table) and plot the results, the SFD looks like this:

enter image description here

Shouldn't it be linear? What happened?

Wasabi
  • 13,167
  • 8
  • 39
  • 62
Marina Vendl Craveiro
  • 21
  • 1

1 Answers1

-1

Dear madam , pls make beam with keypoints and then do meshing with mesh tool and use smisc3 and 16 for bending moment and smisc 6 & 19 for shear force
