How to compare small and large scale model of an IC engine to predict force, torque, rpm etc generated by actual engine?

Asked May 12 '16 at 15:34

Active May 13 '16 at 16:02

Viewed 175 times

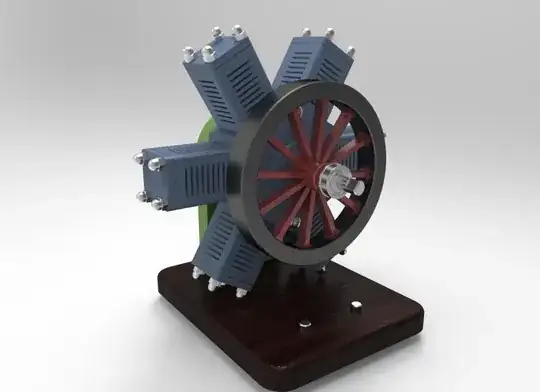

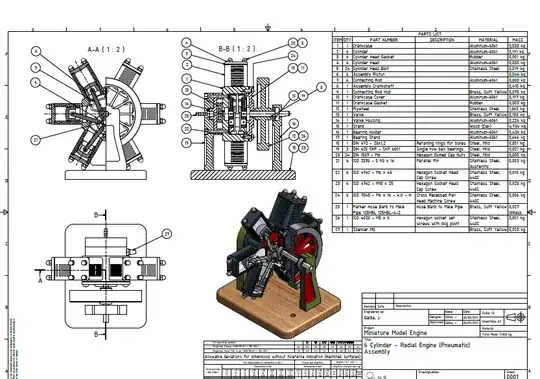

I have this 6 cylinder radial engine designed in Solidworks. Rendering Blueprint (Source:Inventor Wizards)

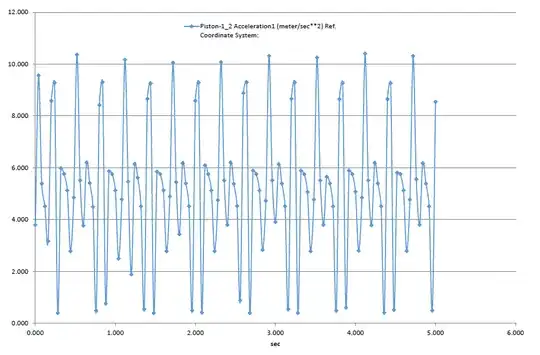

And I want to perform some motion analysis on this engine to make some prediction about it's feasibility. So by now I have successfully completed the motion study simulation and generated plots of piston acceleration against time. Plotted for a crankshaft speed of 200RPM.

Can i use some method or this data to predict acceleration of large scale model of this engine?

edited May 13 '16 at 16:02

asked May 12 '16 at 15:34

Asker

How to compare small and large scale model of an IC engine to predict force, torque, rpm etc generated by actual engine?
