I have a simple setup:

  • 2x Juniper MX-Series routers each having one uplink to a transit provider
  • iBGP session between both routers (point-to-point)
  • For testing purposes I've disabled the uplink from R2 to the transit provider. All routes are received from the R1 iBGP session.
  • Trying to figure out why R2 can't utilize R1's routes when it seems to have a route to do so

The configuration is very basic:

R1

protocols {
    bgp {
        group internal-peers {
            type internal;
            description "iBGP between R1 and R2";
            local-address 172.16.20.1; # lo0.0
            export iBGP-send-direct;
            neighbor 172.16.20.2; # R2 lo0.0
        }
    }
    ospf {
        area 0.0.0.0 {
            interface lo0.0 {
                passive;
            }
            interface et-0/0/0.0; # point-to-point to R2
        }
    }
}

R2

protocols {
    bgp {
        group internal-peers {
            type internal;
            description "iBGP between R2 and R1";
            local-address 172.16.20.2; # lo0.0
            export iBGP-send-direct;
            neighbor 172.16.20.1; # R1 lo0.0
        }
    }
    ospf {
        area 0.0.0.0 {
            interface lo0.0 {
                passive;
            }
            interface et-0/0/0.0; # point-to-point to R1
        }
    }
}

iBGP-send-direct policy-statement

policy-statement iBGP-send-direct {
    term 1 {
        from protocol direct;
        then accept;
    }
    term 2 {
        from protocol static;
        then accept;
    }
}

I'm getting routes properly however when traffic is going from R2 to R1 it's not getting to upstream:

R2

user@r2> show route 1.1.1.1

inet.0: 713294 destinations, 713297 routes (713294 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.0/24         *[BGP/170] 00:07:47, MED 2020, localpref 100, from 172.16.20.1
                      AS path: 174 13335 I, validation-state: unverified
                    > to 172.16.25.1 via et-0/0/0.0

When tracing 1.1.1.1 from R2 it goes to 172.16.25.1 (which is can reach) however nothing else. There is a route on R1 for 1.1.1.1.

R1

user@r1> show route 1.1.1.1

inet.0: 713326 destinations, 713329 routes (713326 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.0/24         *[BGP/170] 04:07:16, MED 2020, localpref 100
                      AS path: 174 13335 I, validation-state: unverified
                    > to 38.104.XX.XX via xe-0/1/4.0

I'm clearly missing something very obvious here. Can someone shed some insight?

Thank you.

Ron Maupin
  • 102,040
  • 26
  • 123
  • 202
WinkyWolly
  • 257
  • 3
  • 8

2 Answers2

4

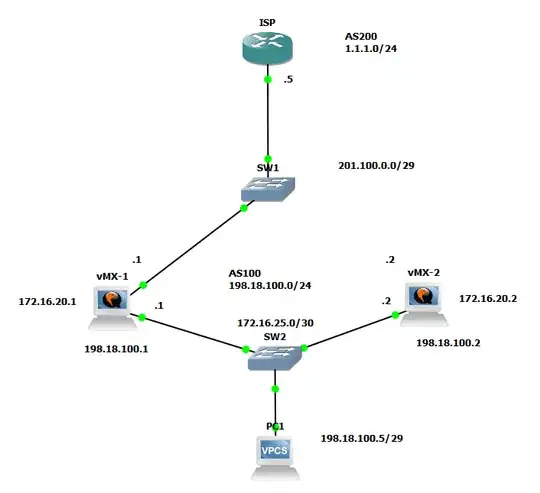

Just for sake of interest I've built a test topology, which displayed in image below:

Little remark: all router's configs are pretty much default. What I did:

  • ISP router with loopback of 1.1.1.1/32. Announcing route 1.1.1.0/24 via BGP to vMX-1. BGP session to vMX-2 not configured;
  • vMX-1 and vMX-2 share virtual IP 198.18.100.3 via VRRP; this IP is set as default gateway for PC1 (198.18.100.5);
  • vMX-1 announces 198.18.100.0/24 to ISP;
  • Connection from vMX-2 to ISP deleted intentionaly.

Router configurations:

ISP

interface Loopback0
 ip address 1.1.1.1 255.255.255.255
!
interface FastEthernet0/0
 ip address 201.100.0.5 255.255.255.248
 duplex auto
 speed auto
!
router bgp 200
 no synchronization
 bgp router-id 1.1.1.1
 bgp log-neighbor-changes
 network 1.1.1.0 mask 255.255.255.0
 neighbor 201.100.0.1 remote-as 100
 neighbor 201.100.0.1 update-source FastEthernet0/0
 no auto-summary
!
ip route 1.1.1.0 255.255.255.0 Null0

Status:

Neighbor        V          AS MsgRcvd MsgSent   TblVer  InQ OutQ Up/Down  State/PfxRcd
201.100.0.1     4        100      53      50        4    0    0 00:15:01        1

     1.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C       1.1.1.1/32 is directly connected, Loopback0
S       1.1.1.0/24 is directly connected, Null0
     201.100.0.0/29 is subnetted, 1 subnets
C       201.100.0.0 is directly connected, FastEthernet0/0
B    198.18.100.0/24 [20/0] via 201.100.0.1, 00:07:38

vMX-1

interfaces {
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 201.100.0.1/29;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 172.16.25.1/30;
                address 198.18.100.1/29 {
                    vrrp-group 1 {
                        virtual-address 198.18.100.3;
                        priority 50;
                        accept-data;
                    }
                }
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 172.16.20.1/32;
            }
        }
    }
}
routing-options {
    static {
        route 198.18.100.0/24 {
            discard;
            preference 240;
        }
    }
}
protocols {
    bgp {
        local-as 100;
        group internal-peers {
            type internal;
            local-address 172.16.20.1;
            export ibgp-local-as;
            neighbor 172.16.20.2;
        }
        group isp {
            type external;
            export bgp-local-as;
            neighbor 201.100.0.5 {
                peer-as 200;
            }
        }
    }
    ospf {
        area 0.0.0.0 {
            interface lo0.0 {
                passive;
            }
            interface ge-0/0/1.0;
        }
    }
}
policy-options {
    policy-statement bgp-local-as {
        term t1 {
            from {
                route-filter 198.18.100.0/24 exact;
            }
            then accept;
        }
    }
    policy-statement ibgp-local-as {
        term t1 {
            then {
                next-hop self;
            }
        }
    }
}

Status:

> show bgp summary
Table          Tot Paths  Act Paths Suppressed    History Damp State    Pending
inet.0
                       1          1          0          0          0          0
Peer                     AS      InPkt     OutPkt    OutQ   Flaps Last Up/Dwn State|#Active/Received/Accepted/Damped...
172.16.20.2             100         42         44       0       0       18:28 0/0/0/0              0/0/0/0
201.100.0.5             200         36         41       0       0       17:09 1/1/1/0              0/0/0/0

> show route
inet.0: 12 destinations, 12 routes (12 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.0/24         *[BGP/170] 00:17:35, MED 0, localpref 100
                      AS path: 200 I, validation-state: unverified
                    > to 201.100.0.5 via ge-0/0/0.0
172.16.20.1/32     *[Direct/0] 00:32:40
                    > via lo0.0
172.16.20.2/32     *[OSPF/10] 00:21:16, metric 1
                    > to 172.16.25.2 via ge-0/0/1.0
                      to 198.18.100.2 via ge-0/0/1.0
172.16.25.0/30     *[Direct/0] 00:22:00
                    > via ge-0/0/1.0
172.16.25.1/32     *[Local/0] 00:22:00
                      Local via ge-0/0/1.0
198.18.100.0/24    *[Static/240] 00:09:57
                      Discard
198.18.100.0/29    *[Direct/0] 00:29:46
                    > via ge-0/0/1.0
198.18.100.1/32    *[Local/0] 00:29:46
                      Local via ge-0/0/1.0
198.18.100.3/32    *[Local/0] 00:22:42
                      Local via ge-0/0/1.0
201.100.0.0/29     *[Direct/0] 00:38:10
                    > via ge-0/0/0.0
201.100.0.1/32     *[Local/0] 00:38:10
                      Local via ge-0/0/0.0
224.0.0.5/32       *[OSPF/10] 00:31:58, metric 1
                      MultiRecv

> show ospf neighbor
Address          Interface              State     ID               Pri  Dead
198.18.100.2     ge-0/0/1.0             Full      172.16.20.2      128    35
172.16.25.2      ge-0/0/1.0             Full      172.16.20.2      128    39

vMX-2

interfaces {
    ge-0/0/0 {
        unit 0 {
            family inet {
                address 201.100.0.2/29;
            }
        }
    }
    ge-0/0/1 {
        unit 0 {
            family inet {
                address 172.16.25.2/30;
                address 198.18.100.2/29 {
                    vrrp-group 1 {
                        virtual-address 198.18.100.3;
                        priority 150;
                        accept-data;
                    }
                }
            }
        }
    }
    lo0 {
        unit 0 {
            family inet {
                address 172.16.20.2/32;
            }
        }
    }
}
protocols {
    bgp {
        local-as 100;
        group internal-peers {
            type internal;
            local-address 172.16.20.2;
            export ibgp-local-as;
            neighbor 172.16.20.1;
        }
    }
    ospf {
        area 0.0.0.0 {
            interface lo0.0 {
                passive;
            }
            interface ge-0/0/1.0;
        }
    }
}
policy-options {
    policy-statement ibgp-local-as {
        term t1 {
            then {
                next-hop self;
            }
        }
    }
}

Route table from vMX-2:

> show route

inet.0: 11 destinations, 11 routes (11 active, 0 holddown, 0 hidden)
+ = Active Route, - = Last Active, * = Both

1.1.1.0/24         *[BGP/170] 00:03:36, MED 0, localpref 100, from 172.16.20.1
                      AS path: 200 I, validation-state: unverified
                    > to 172.16.25.1 via ge-0/0/1.0
                      to 198.18.100.1 via ge-0/0/1.0
172.16.20.1/32     *[OSPF/10] 00:33:17, metric 1
                      to 172.16.25.1 via ge-0/0/1.0
                    > to 198.18.100.1 via ge-0/0/1.0
172.16.20.2/32     *[Direct/0] 00:44:46
                    > via lo0.0
172.16.25.0/30     *[Direct/0] 00:34:22
                    > via ge-0/0/1.0
172.16.25.2/32     *[Local/0] 00:34:22
                      Local via ge-0/0/1.0
198.18.100.0/29    *[Direct/0] 00:41:49
                    > via ge-0/0/1.0
198.18.100.2/32    *[Local/0] 00:41:49
                      Local via ge-0/0/1.0
198.18.100.3/32    *[Local/0] 00:08:33
                      Local via ge-0/0/1.0
201.100.0.0/29     *[Direct/0] 00:49:58
                    > via ge-0/0/0.0
201.100.0.2/32     *[Local/0] 00:49:58
                      Local via ge-0/0/0.0
224.0.0.5/32       *[OSPF/10] 00:43:57, metric 1
                      MultiRecv

Ping from PC1:

PC1> ping 1.1.1.1
84 bytes from 1.1.1.1 icmp_seq=1 ttl=254 time=12.161 ms
84 bytes from 1.1.1.1 icmp_seq=2 ttl=254 time=12.250 ms
84 bytes from 1.1.1.1 icmp_seq=3 ttl=254 time=5.690 ms
84 bytes from 1.1.1.1 icmp_seq=4 ttl=254 time=9.649 ms
84 bytes from 1.1.1.1 icmp_seq=5 ttl=254 time=2.823 ms

Trace:

PC1> trace 1.1.1.1
trace to 1.1.1.1, 8 hops max, press Ctrl+C to stop
 1   172.16.25.2   2.584 ms  0.861 ms  0.645 ms
 2   172.16.25.1   2.450 ms  1.736 ms  1.723 ms
 3   *201.100.0.5   9.231 ms (ICMP type:3, code:3, Destination port unreachable)

I think your configuration is simply lack of next-hop self policy for iBGP.

Andrii Prokhorov
  • 2,814
  • 12
  • 27
0

What is 172.16.25.1? Are you setting next-hop self? By default, IBGP advertised prefixes retain their current next-hop (which would be transit).

You can modify Junos's BGP implementation to retain all routes whether or not they're valid: https://www.juniper.net/documentation/en_US/junos/topics/reference/configuration-statement/keep-edit-protocols-bgp.html

But I suspect if you can't traceroute that there's more going on here. Can you provide your traceroute? Can you also include the source address of the traceroute? I see private addresses in the mix, which aren't typically going to be helpful when tracerouting to the internet.
