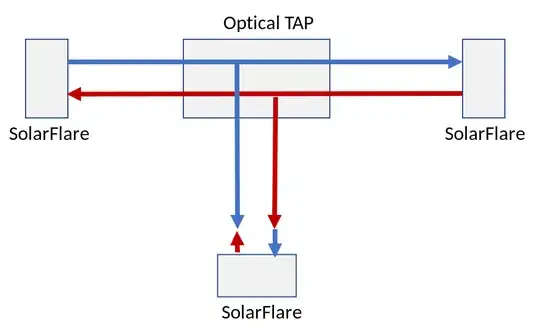

We have an optical tap (https://www.fs.com/products/73675.html) that provides an LC connector providing two TX instead of RX/TX. enter image description here As you can see, there is a conflict.

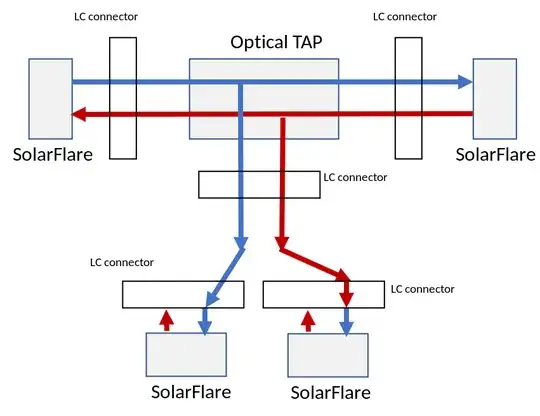

What I think I need: enter image description here A splitter from one LC connector RX/TX to two LC connectors TX to be able to connect two NICs.

How is this done in the industry?

Tom Newton
  • 23
  • 5
無名前
  • 408
  • 3
  • 15

1 Answers1

3

For starters: you can split a Tx into multiple Txs (transmitting to receiving direction) but you can't possibly join multiple fibers into one (transmitting to receiving as well).

The Tx on the tap goes into the Rx on the NIC. The NIC needs to be able to "link" to the Tx only, without negotiation.

edit

From your diagrams, you need to use either two simplex LC patches or a splitable one (many are) to connect the dual LC tap-out to two monitor ports (Rx side). Each port's Tx side stays empty (you should put on a dust cover though).

edit2

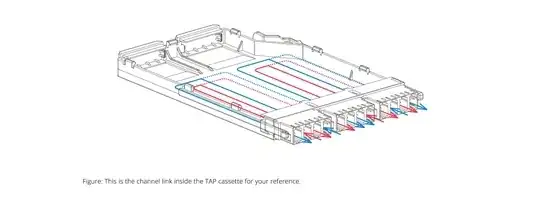

The diagram you linked to enter image description here shows that the link's signal (LC port 1-2 to 3-4) is split by direction to LC port 5 and 6 - both are Tx. 4→1 is split to 6 and 2→3 is split to 5.
