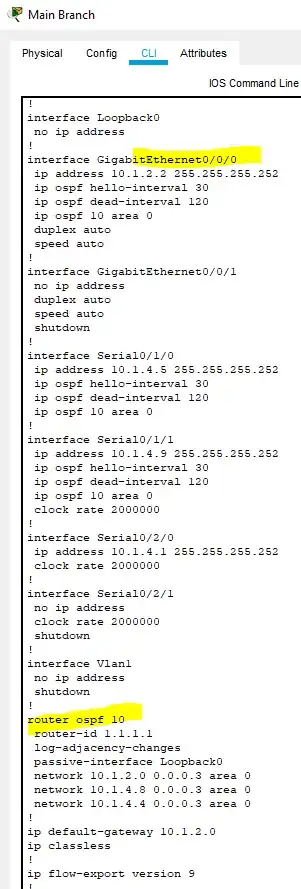

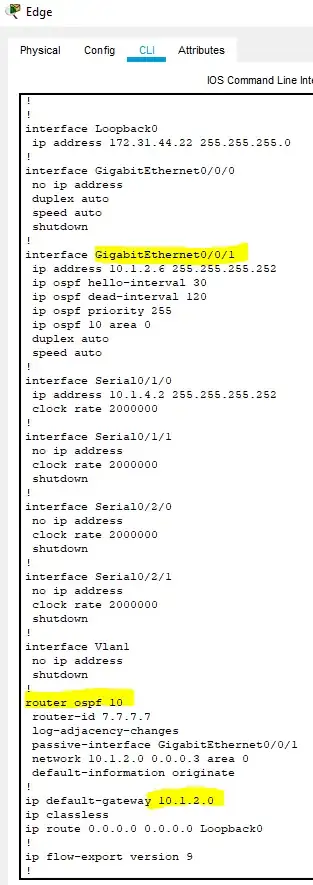

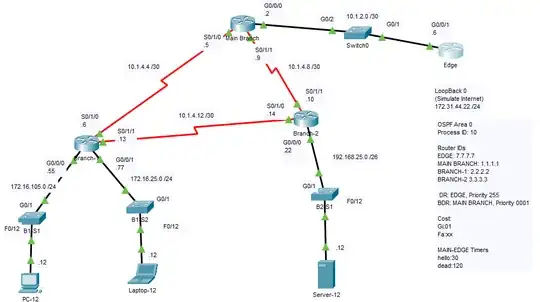

I have set up an OSPF network and I cannot ping from the Edge router to Main Branch. enter image description here

enter image description here enter image description here

Jesse P.
  • 4,690
  • 1
  • 11
  • 14
Queeque
  • 11
  • 1

1 Answers1

2

You have some problems:

The two addresses, 10.1.2.6/30 and 10.1.2.2/30 are in two different networks, but they need to be in the same network for direct router connection (see this two-part answer for the specifics).

Next, never use the ip default-gateway command on a router the has routing enabled (see this answer for the details).

Also, the Edge router will not form a neighbor on a passive interface.
