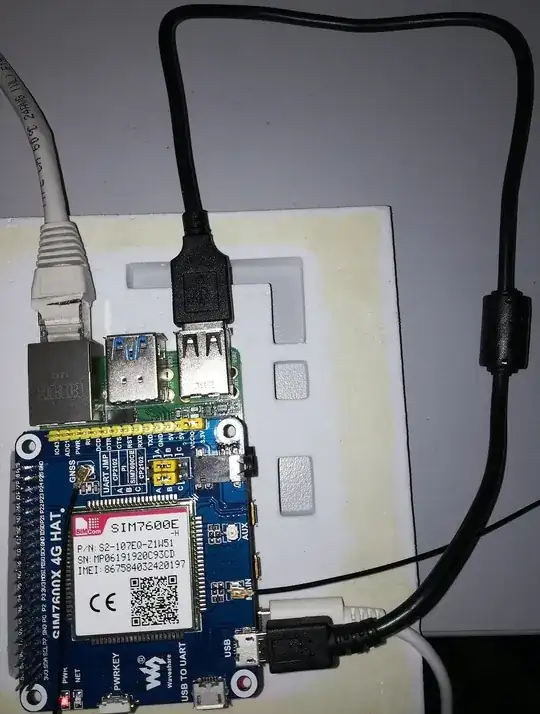

I have connected the new Raspberry Pi 4 model b with the waveshare SIM7600E-H 4G HAT. The os is Raspbian Buster Lite. The configuration I use is the following: enter image description here 1) The jumpers are placed in the middle position.
2) The shield connected onto the RPi gpio.
3) There is also a connection between the pi and the waveshare "USB" port (not "USB to UART")
4) raspi-config > Interfacing Options > Serial = Login shell over serial = NO Serial port hardware enabled = YES
5) /boot/config.txt has enable_uart=1

So far I have managed to give AT commnads succesfully, and even have access on the internet via ppp0 as it shown in the waveshare wiki page: https://www.waveshare.com/wiki/SIM868_P%20...%20Networking

However I haven't managed to find a way to access 4g network via wwan0. I assume that this is related with the fact that in the /dev/ folder there are no ttyUSB serial ports.

Following info I found here:
https://www.raspberrypi.org/forums/viewtopic.php?t=224355

I gave the command:

sudo qmicli -d /dev/cdc-wdm0 --dms-set-operating-mode='online'

and got:

error: couldn't create QmiDevice: Couldn't query file info: Error when getting information for file “/dev/cdc-wdm0”: No such file or directory

since no /dev/cdc-wdm0 device exist.

I also tried to compile gobiserial from SIM7X00-Driver.7z. I updated the raspberrypi-kernel-headers but when I tried to compile the driver I got the following error:

GobiSerial.c:55:10: fatal error: linux/usb-wwan.h: No such file or directory

Has anyone any idea why no ttyUSB exist and how can wwan0 be configured

dk13
  • 113
  • 2
  • 5

3 Answers3

3

In case anyone has also issues. The link to the raspberry pi forum helped me. Following steps are working for me.

#install the packages
sudo apt-get update && sudo apt-get install libqmi-utils udhcpc
ifconfig wwan0 down
# Enable OS Raw IP Mode setting (not persistent)
echo Y > /sys/class/net/wwan0/qmi/raw_ip
ifconfig wwan0 up
qmicli -d /dev/cdc-wdm0 --dms-set-operating-mode='online'
#change apn value according to the service provider information (also maybe username and password are needed)
qmicli -d /dev/cdc-wdm0 --device-open-net="net-raw-ip|net-no-qos-header" --wds-start-network="apn='internet',ip-type=4" --client-no-release-cid
udhcpc -i wwan0
NoobNoob
  • 31
  • 2
2

If ModemManager is running (which is is in recent versions of Ubuntu Desktop), it can block qmcli from working.

You can check if its running

$ ps ax | grep -i modem
832 ?        Ssl    0:01 /usr/sbin/ModemManager

And if so you can stop it with

sudo systemctl unmask ModemManager.service # may need this
sudo systemctl disable ModemManager.service
Robert J Berger
  • 121
  • 3
1

First you have to press the pwrkey for around 3 seconds. Then wait for the Net LED to turn on (it can take up to around 15s). If there is a network, it should start slowly blinking after another 3-10 Seconds. Then try to run the command again.
