I have similar setup as this post: PWM via GPIO to trigger a MAPIR Camera
but a different camera: https://www.mapir.camera/collections/survey3/products/survey3w-camera-red-green-nir-rgn-ndvi. I am currently trying to trigger this MAPIR NDVI Camera with a PWM Signal. The camera is connected via this HDMI trigger cable. In my case, the white wire is connected to GPIO PIN 13, the black wire is connected to a grounding pin.

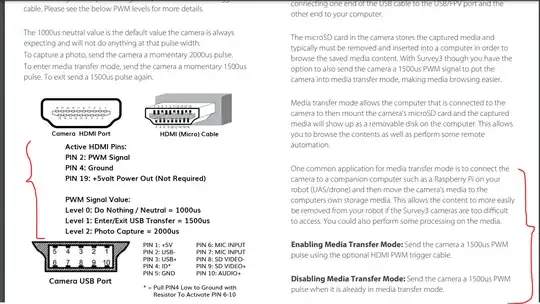

For the camera to trigger I need (from what I read) 2000 us PWM or 500 HZ signal.
Things i have tried:
import RPi.GPIO as IO
import time
IO.setmode (IO.BCM)
We will set GPIO13 (or PIN33) as output pin. We will get PWM output from this pin.
IO.setup(13,IO.OUT)
After setting the pin as output we need to setup the pin as PWM output pin,
p = IO.PWM(output channel , frequency of PWM signal)
p = IO.PWM (13 ,500)
p.start(dc) wheere dc = duty cycle
p.start(100)
time.sleep(0.002)
p.stop()
IO.cleanup()
To DO: Find image image and send them to azure cloud storage
The code doesn't show any errors but I am not sure how do I get the images. I don't know what this code is expected to do by the end - sorry using this camera for the first time. The goal is to capture images and send them on a different cloud server (in the same code). I can do the later part but I want to access images but I don't see them.
