I want generate many 40khz square wave on GPIO pin by simulink but when I try generate more than 10khz is oscillascope not display accurately. I must fix this problem how ? I think supported language on simulink not appropriate with rasp or sample time ...but I not know solve.

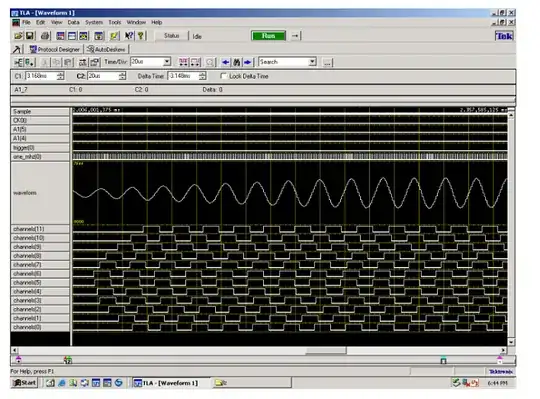

I pursuring a project about acoustic levitation, using many ultrasonic sensor to lift the object in the specific medium. I must generate phase array to create a focal point that where can lift object. Ultrasound I using is MA40S4S murata, to it operate I must generate a 40khz square wave. Beside that, to create a phased array is that I must caculate delay time from each ultrasound to focal point. And my main task now, I must generate 25 of 40khz square wave with each wave have a delay time differently as the figure following. Because of caculatation of time delay very complex so I choose matlab to do it and I use matlab with raspberry pi to generate waves, but I only generated 20khz. Finally, I tried using python to programming. but I not sure whether your library can support 25 pin GPIO to I can generate 25 of 40 khz square wave. please help me, my english not good, sympathy for me. enter image description here

goldilocks
  • 60,325
  • 17
  • 117
  • 234
Xúc Cảm
  • 51
  • 1
  • 6

4 Answers4

1

I don't know anything about Simulink.

However, my pigpio library will allow you to generate accurate square waves in several ways.

I give Python examples, the same can be done from C or the command line.

  1. hardware clock GPIO
  2. hardware PWM GPIO
  3. Waves for arbitrary GPIO
joan
  • 71,852
  • 5
  • 76
  • 108
0

I want sure rasp can generate a lot of 40khz square wave at the same time accurately

It's not clear what you mean by "a lot" here: As in, the number of consecutive waves, or the pins that can generate waves simultaneously?

If the latter, basic PWM generation on the Pi only has two independent channels, which can be accessed via 4 pins; GPIOs 12 and 18 for channel 0, 13 and 19 for channel 1.

I believe pigpio has a number of other ways of generating pulses by making use of some of the other clocks on the Pi and joan's links should lead you to examples of that. With regard to the basic hardware mentioned in the last paragraph, here's a simple C program using libbcm2835 to generate a 40 khz pulse. This should work on all models.1 Part of my point is whatever implementation simulink uses, it probably only makes use of these two basic channels.

Note most of the code is actually OS signal handling so you can start it, let it run in the foreground, then stop it with ctrl-c and have the pin reset as an input. Actually turning on the wave in hardware only take a few lines and the process then just sleeps indefinitely as it does not have to do anything except wait for SIGTERM.

#include <bcm2835.h>
#include <stdio.h>
#include <signal.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>

// Compile --std=gnu99 for sigaction.

// 19200000 / 10 / 48 = 40000 Hz
#define CLOCK_DIVISOR 10
#define PWM_RANGE 48
#define PWM_PIN 18
// For pins 13 or 19, use channel 1.
#define PWM_CHANNEL 0
// For pins 12 or 13, use ALT0.
#define PWM_ALT BCM2835_GPIO_FSEL_ALT5


void sigHandler (int sig)
{
    fprintf(stderr, "Stopped by signal %d.\n", sig);
    bcm2835_pwm_set_mode(PWM_CHANNEL, 0, 0);
    bcm2835_gpio_clr(PWM_PIN);
    bcm2835_gpio_fsel(PWM_PIN, BCM2835_GPIO_FSEL_INPT);
    bcm2835_close();
    exit(0);
}


void setSigHandler ()
{
    int sigs[] = { SIGINT, SIGTERM, SIGQUIT, SIGHUP, SIGABRT },
        num_sigs = sizeof(sigs) / sizeof(int);

    struct sigaction sigact;
    memset(&sigact, 0, sizeof(sigact));
    sigact.sa_handler = sigHandler;
    for (int i = 0; i < num_sigs; i++) {
        if (sigaction(sigs[i], &sigact, NULL) == -1) {
            fprintf(stderr, "sigaction(%d) fail:\n", sigs[i]);
            perror(NULL);
        }
    }
}


int main (void)
{
    if (!bcm2835_init()) {
        fprintf(stderr, "Failed to initialize.\n");
        return 1;
    }

    setSigHandler();

    bcm2835_pwm_set_clock(CLOCK_DIVISOR);
    bcm2835_pwm_set_mode(PWM_CHANNEL, 1, 1);
    bcm2835_pwm_set_range(PWM_CHANNEL, PWM_RANGE);
    bcm2835_gpio_fsel(PWM_PIN, PWM_ALT);
    bcm2835_pwm_set_data(PWM_CHANNEL, PWM_RANGE / 2);

    while (1) sleep (60);

    return 0;
}

So to compile that:

gcc --std=gnu99 square_wave.c -lbcm2835

Here's 1 ms of output sampled with a logic analyzer working at 12 Mhz:

-

Looks like a perfect 40 kHz square wave. However, again, you can only generate 2 of these independently using the basic hardware, which you can access via 4 pins on the 40-pin models (there's only 1 explicit PWM pin on the older 26-pin models).


1. When I first posted this I said it did not work on the Pi 3, although that might have been been my fritzy logic analyzer; I've since had no problems generating servo style pulses on all four pins with libbcm2835 on the Pi 3, which are only 50 Hz but rely on microsecond scale differences in width (I use a divisor of 8 and a range of 48000 for that).

goldilocks
  • 60,325
  • 17
  • 117
  • 234
0

You should use DMA to access the GPIO. Then you'll be able to map them all, and with hardware write your 1 and 0. It won't be CPU intensive and you'll be able to make it almost as fast as you'd like it.

Here you might find some really interesting hints : https://github.com/richardghirst/PiBits/tree/master/ServoBlaster

YCN-

YCN-
  • 280
  • 1
  • 7
-1

https://www.instructables.com/id/Ultrasonic-Array/ This one uses an Ardunio Mega, you can get the board for 8$. It also provides a driver to amplify the signals and software to focus and perform other operations.
