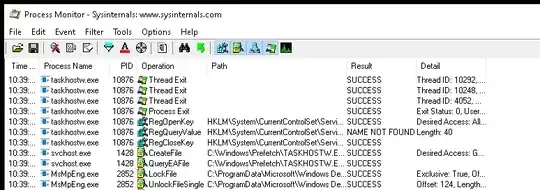

I regularly use Process Monitor to to debug an application that misbehaves very often. I don't develop the application so fixing the source code is not an option. The image below shows the kind of output I'm used to:

procmon_output

Now I want to make this process automatic. Ideally I want to have a script or program that accepts two arguments, the PID of the process and a time interval (e.g 2 seconds). The script/program should then capture the events for that PID during that time interval and store them in a file.

But I haven't being able to find the way to do that. After some research I've arrived to the following conclusions (this is all new stuff for me so please correct me if I'm wrong):

  • Process Monitor uses the Event Tracing for Windows (ETW) framework to capture the events. In particular it uses the NT Kernel Logger session which (by default?) traces the events provided by the Windows Kernel Trace provider.
  • The ETW framework offers an API, and it is possible to use it by developing a program in C++/C#. This might be an option but it seems quite involved. On the other hand, there are some command line tools that can be used to capture ETW events: logman and tracelog. logman comes by default with windows while to use tracelog you have to first install Visual Studio, which is not an option for me.

Thus logman seems to be a good option. I tried the following:

C:\Windows\system32>logman start "NT Kernel Logger" -p "Windows Kernel Trace" -ets -nb 16 256 -bs 64 -o C:\trlog.etl -rt
The command completed successfully.

C:\Windows\system32>logman stop "NT Kernel Logger" -ets The command completed successfully.

C:\Windows\system32>tracerpt C:\trlog.etl -o C:\trlog.xml -of XML -summary C:\trlog-summary.txt -report C:\trlog-report.xml

Input

File(s): C:\trlog.etl

100.00%

Output

DumpFile: C:\trlog.xml Summary: C:\trlog-summary.txt Report: C:\trlog-report.xml

The command completed successfully.

C:\Windows\system32>

But the output of C:\trlog.xml doesn't seem to correspond with the output I expected. I expect a list of events as shown in the picture above, where you can distinguish between registry events and I/O events and threading events. But instead I get a list of events similar to this (I cannot tell what kind of event it is nor which fields corresponds to the fields shown by Process Monitor):

<Event xmlns="http://schemas.microsoft.com/win/2004/08/events/event">
    <System>
        <Provider Guid="{9e814aad-3204-11d2-9a82-006008a86939}" />
        <EventID>0</EventID>
        <Version>3</Version>
        <Level>0</Level>
        <Task>0</Task>
        <Opcode>15</Opcode>
        <Keywords>0x0</Keywords>
        <TimeCreated SystemTime="2021-02-19T11:33:47.360274700+00:59" />
        <Correlation ActivityID="{00000000-0000-0000-0000-000000000000}" />
        <Execution ProcessID="10936" ThreadID="5500" ProcessorID="0" KernelTime="90" UserTime="30" />
        <Channel />
        <Computer />
    </System>
    <EventData>
        <Data Name="ProcessId">0x0</Data>
        <Data Name="ServiceState">0x1</Data>
        <Data Name="SubProcessTag">0x80</Data>
        <Data Name="ServiceName">PNRPsvc</Data>
        <Data Name="DisplayName">Peer Name Resolution Protocol</Data>
        <Data Name="ProcessName"></Data>
        <Data Name="LoadOrderGroup"></Data>
        <Data Name="SvchostGroup"></Data>
    </EventData>
    <RenderingInfo Culture="en-DE">
        <Opcode>Services</Opcode>
        <Provider>MSNT_SystemTrace</Provider>
        <EventName xmlns="http://schemas.microsoft.com/win/2004/08/events/trace">SystemConfig</EventName>
    </RenderingInfo>
    <ExtendedTracingInfo xmlns="http://schemas.microsoft.com/win/2004/08/events/trace">
        <EventGuid>{01853a65-418f-4f36-aefc-dc0f1d2fd235}</EventGuid>
    </ExtendedTracingInfo>
</Event>

My questions are:

  • Is logman the right tool for what I'm trying to achieve? Is there a better tool/way to do that?
  • If logman is indeed the right tool, how can I use it? Am I querying the right session/provider. Am I parsing the .etl file properly by using tracerpt? Why I don't see the same output, or at least similar output, to what Process Monitor shows?
