Question

  • iperf3 reports 942Mbps

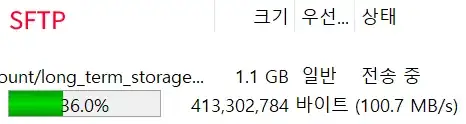

  • SFTP 1GB transfer at 94~100 MB/s

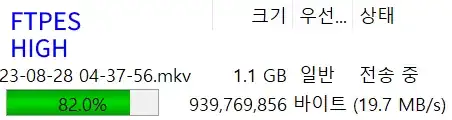

  • Explicit FTPS 1GB transfer at 19~23 MB/s
  • Both CPU / IO load is under 20% on htop

For nearly 99% posts I find in google says that FTP - regardless of encrypted or not - will always be faster than SFTP, and I also find it reasonable.

I spent multiple days over last few years configuring and scratching head why FTPS isn't using full bandwidth, and eventually tried SFTP. Then found out that this was 4x times the speed utilizing nearly full bandwidth.

Is there any possible explanation or vsftpd config error that made FTPS slower than SFTP?

--

To clarify the intention again, I am totally fine using SFTP from now on. I'm exhausted and out of time to fiddle more with FTPS. SFTP works flawlessly for me so I'm not trying to use FTPS again.

I am just curious that there must be reason why majority of tutorials and posts out there says FTPS is faster than SFTP, yet we're seeing exact opposite here.

Configuration

Skipping detailed Server/Client HW info, as iperf3 & SFTP already proved that this isn't Server/Client performance issue.

  • 1 Home Router with 2Gbit/s HW NAT

    • iptime a2003ns-mu (Uses RTL8197F)

  • vsftpd server behind router with 1G link speed

    • Debian 12.2.0-14
    • ASRock J4105m
    • vsftpd 3.0.3

  • client PC behind router at 1G link speed

    • Win11 Edu
    • FileZilla 3.66.4

  • Uses TLSv1.2 on FTP for outside connection

Situation

  • Accessing FTP server's files from local network

vsftpd config

# General
pam_service_name=vsftpd
utf8_filesystem=YES
dirmessage_enable=YES
xferlog_enable=YES

Connectivity


listen=YES
listen_ipv6=NO
connect_from_port_20=YES


Security


anonymous_enable=NO
local_enable=YES
write_enable=YES
local_umask=022


chroot


chroot_local_user=YES
secure_chroot_dir=/var/run/vsftpd/empty
allow_writeable_chroot=YES


Certs


rsa_cert_file=/etc/letsencrypt/live/[REDACTED]/fullchain.pem
rsa_private_key_file=/etc/letsencrypt/live/[REDACTED]/privkey.pem


Explicit SSL


ssl_enable=YES
force_local_logins_ssl=YES
force_local_data_ssl=YES
allow_anon_ssl=NO
require_ssl_reuse=NO
ssl_tlsv1=YES
ssl_sslv2=NO
ssl_sslv3=NO
ssl_ciphers=HIGH


Passive mode


pasv_addr_resolve=YES
pasv_address=[REDACTED].com
pasv_enable=YES
pasv_min_port=12000
pasv_max_port=13000


Preventing error using local address connection


pasv_promiscuous=yes

Speed data

[ ID] Interval           Transfer     Bitrate         Retr  Cwnd
[  5]   0.00-1.00   sec   113 MBytes   950 Mbits/sec    0    218 KBytes
[  5]   1.00-2.00   sec   112 MBytes   942 Mbits/sec    0    218 KBytes
[  5]   2.00-3.00   sec   112 MBytes   938 Mbits/sec    0    218 KBytes
[  5]   3.00-4.00   sec   112 MBytes   942 Mbits/sec    0    218 KBytes
[  5]   4.00-5.00   sec   112 MBytes   942 Mbits/sec    0    218 KBytes
[  5]   5.00-6.00   sec   112 MBytes   941 Mbits/sec    0    218 KBytes
[  5]   6.00-7.00   sec   113 MBytes   944 Mbits/sec    0    218 KBytes
[  5]   7.00-8.00   sec   112 MBytes   940 Mbits/sec    0    218 KBytes
[  5]   8.00-9.00   sec   112 MBytes   942 Mbits/sec    0    218 KBytes
[  5]   9.00-10.00  sec   112 MBytes   942 Mbits/sec    0    218 KBytes
- - - - - - - - - - - - - - - - - - - - - - - - -
[ ID] Interval           Transfer     Bitrate         Retr
[  5]   0.00-10.00  sec  1.10 GBytes   942 Mbits/sec    0             sender
[  5]   0.00-10.00  sec  1.10 GBytes   941 Mbits/sec                  receiver

jupiterbjy
  • 113
  • 7

1 Answers1

0

SFTP operates over a single, secure connection. It uses a secure channel (SSH) for both data and control information. This eliminates the need for separate data and control connections as in FTPS, which can result in reduced latency. FTPS, on the other hand, typically uses two separate channels for control (command) and data, which may introduce additional overhead.

SFTP relies on the SSH protocol, which provides strong encryption by default. The encryption algorithms used in SFTP are generally efficient and optimized for secure file transfers. FTPS, on the other hand, may use various encryption options, and the choice of encryption algorithms can impact performance. In some cases, less efficient algorithms might be chosen, slowing down data transfer speeds.

Try to increase the passive port range

pasv_min_port=12000
pasv_max_port=13000

Modify the ssl_ciphers to include more secure and performant cipher suites:

ssl_ciphers=ECDHE-RSA-AES128-GCM-SHA256:ECDHE-RSA-AES256-GCM-SHA384
Turdie
  • 2,945
