I am using cilium as my CNI. I have successfully run the cilium connectivity test and all tests pass. My nodegroup schedules a t3.small nodes (3 of them), which allows me to run 11 pods without Ipv4Prefix enabled. Now I have enabled Ipv4Prefix by running

kubectl set env daemonset aws-node -n kube-system ENABLE_PREFIX_DELEGATION=true

and when I run:

kubectl describe daemonset -n kube-system aws-node | grep ENABLE_PREFIX_DELEGATION

I get :

  ENABLE_PREFIX_DELEGATION:  true
  ENABLE_PREFIX_DELEGATION:  true
  ENABLE_PREFIX_DELEGATION:  true

I have also installed cilium by running the following:

helm install cilium cilium/cilium --version 1.15.0 --namespace kube-system --set eni.enabled=true --set ipam.mode=eni --set eni.awsEnablePrefixDelegation=true --set egressMasqueradeInterfaces=eth0

and patched the daemonset like so:

kubectl -n kube-system patch daemonset aws-node --type='strategic' -p='{"spec":{"template":{"spec":{"nodeSelector":{"io.cilium/aws-node-enabled":"true"}}}}}'

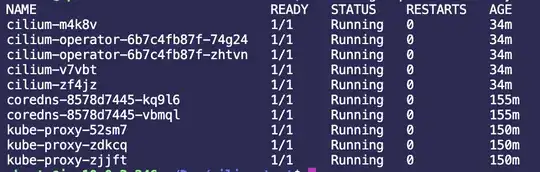

I can see all the pods are running fine.

enter image description here

I can also see that prefix has been assigned to the eni:

aws ec2 describe-network-interfaces --region eu-west-2 --network-interface-ids eni-0eb1aff34572830d6 | grep Ipv4Prefix
    "Ipv4Prefixes": [
                "Ipv4Prefix": "10.0.1.112/28"
                "Ipv4Prefix": "10.0.1.224/28"

QUESTION

I know the t3.small instances can have a max pod of 110, however, I still cannot schedule more than 11 pods per instance. What could be the issue?

ERROR

 0/3 nodes are available: 3 Too many pods. preemption: 0/3 nodes are available: 3 No preemption victims found for incoming pod.

this should not be the case when IPV4 prefix is enabled

eagercoder
  • 123

0 Answers0
